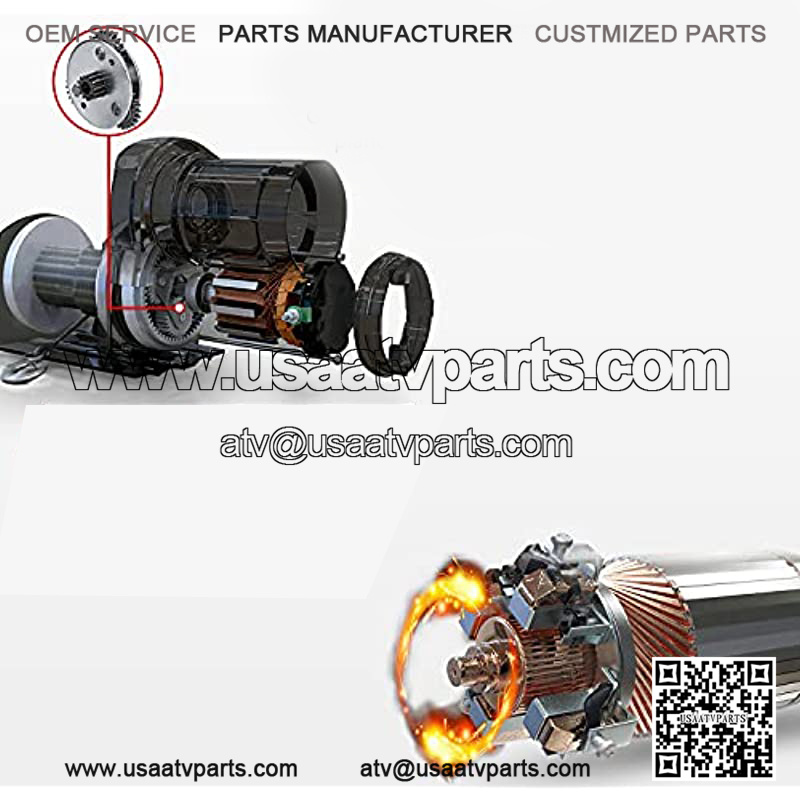

Monstrous Winching Power: A 1.9 HP motor, a full metal 3-stage planetary gear system and a permanent magnet motor guarantee reliable pulling muscle against any harsh conditions and ensure faster line speed under load.
Intrepid From Inside: Equipped with a gear reduction ratio of 153:1 and a differential planetary gear train, this ATV/UTV winch is born with stronger pulling capacity.

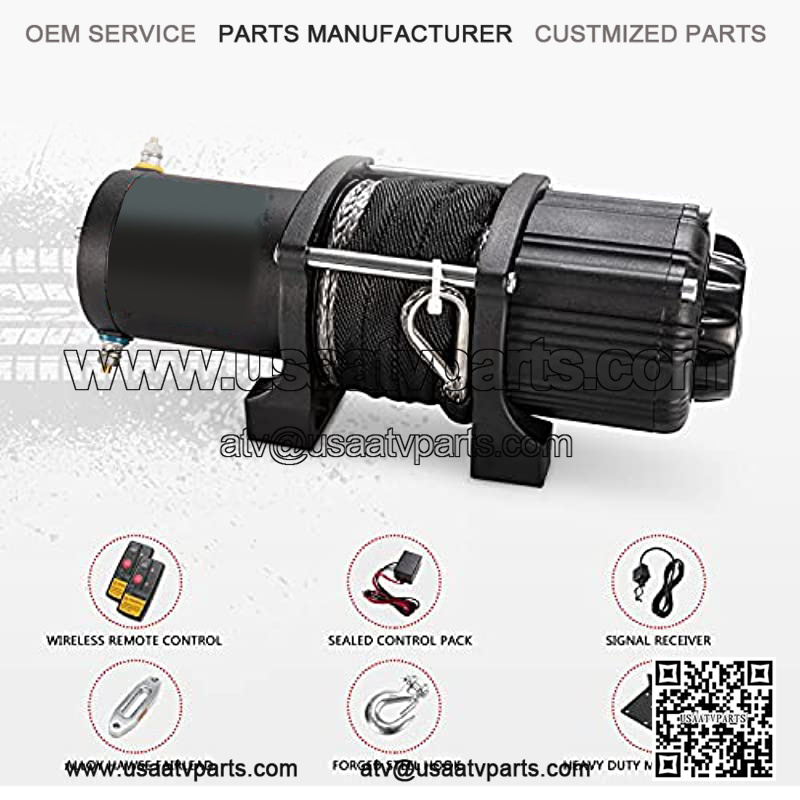

Dual Remote Control: This wireless winch comes with the dual remote control mode, including 25 meters of wireless control, and features an upgraded synthetic rope that is more than 10 times durable than traditional ones.
Ultimate Protection: Rainproof construction, matte black textured finish and sealed engine guarantee resistance against rain and moisture and ensures trust-worthiness and long last functionality.
Warranty & Caution: This winch also enjoys a 1 Year Warranty and lifetime technical support. Besides, 2 longer cables should be connected to the battery, and the shorter one is required to be connected to the motor during installation.
Fieryred, which has been engaging in the R Length:15m(49.21ft)
– Dual Control Mode: Remote (25 meters; 82.02ft) and Wired (2.5 meters; 8.20ft)
– Drum Diameter/Length: ?37mm(1.46in) x72mm(2.83in)

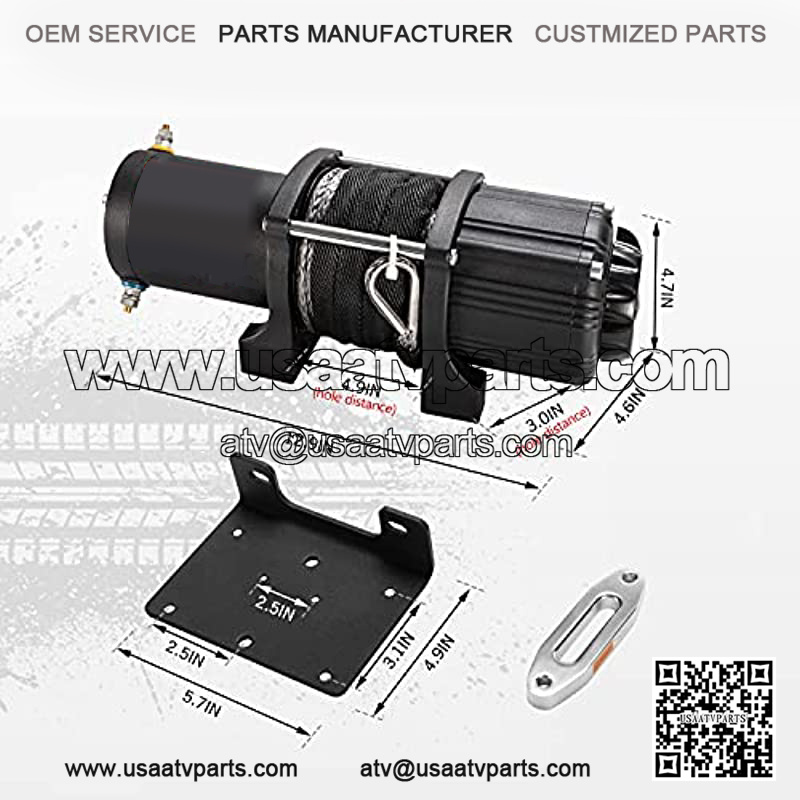

– Mounting bolt pattern: 130mm(5.1in)*76mm(2.99in)
– Dimensions: 316mm(12.44in)*120mm(4.72in)*106mm(4.17in)
-Recommended Battery: 23A 12V
-Rope: synthetic rope
-Control switch: Remote Switch/Wireless Control
-Full Load Line Speed (ft/min)??2.6ft(0.8m)
-No-Load Line Speed (ft/min)??10.8ft(3.3m)
-Max Current at Full Load (A):140(amps)
1
1
1
NOTE
The wireless control is not water-proof.
The synthetic rope should not be used in circumstances that are not included in the manual instruction.
It is not recommended to use the winch for purposes that are not listed in the manual instruction.
Before using, you should check your winch carefully. Any part that is damaged should be properly repaired or replaced.
Observe your winch while winching, while standing at a safe distance.
Do not attempt to exceed the pulling limits of this winch.
Winch clutch should be disengaged when not in use and fully engaged when in use.
Please do not use wireless controller if you’are going to operate 2 winches simultaneously, which is likely to result in signal interference.
Do not operate the winch at an angle of more than 15??, because angles greater than this will deform or damage parts of the winch.
