Package includes: 1X 12V 500A Winch Solenoid Relay
Compatible with 8000lb-12000lb winch with DC 12V (series wound and permanent magnet)
Compatible with Wireless Remote Systems
Come with shatterproof sealed and corrosion resistant case

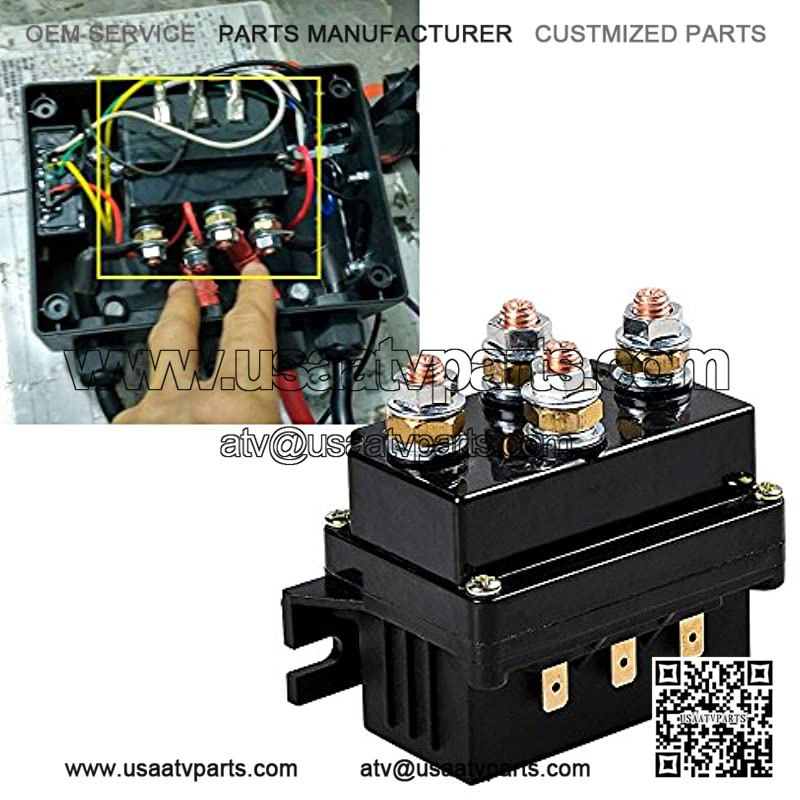

Pre-cutting mounting bracket for easy installation into control box
Product description
Specifications:
Condition: 100% Brand New
Package includes: 1X 12V 500A Winch Solenoid Relay

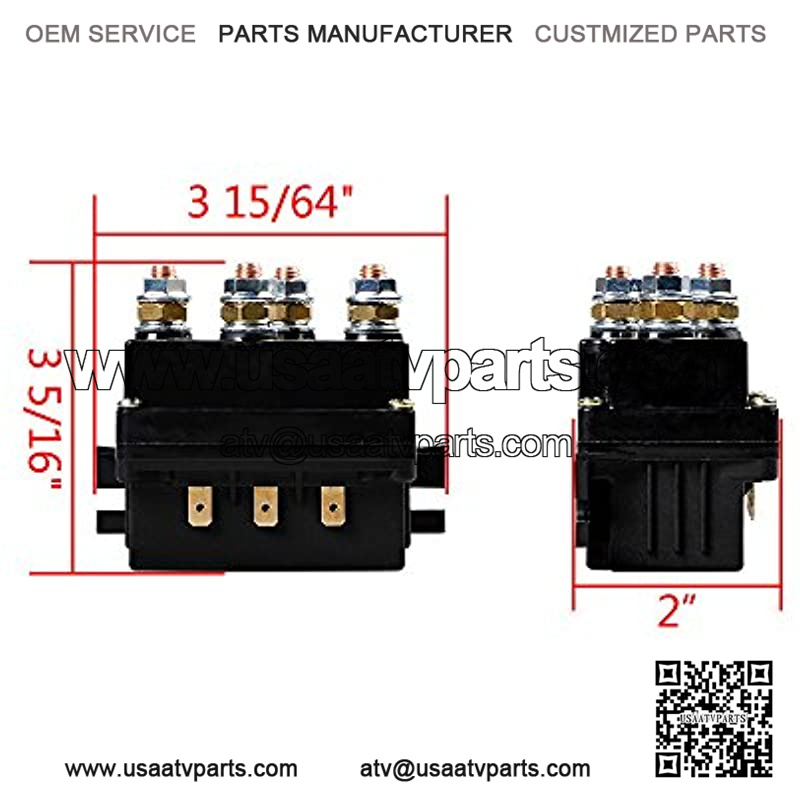

Size: (As the Picture Shown)
Length: 3 15/64″ (8.2cm)
Width: 2″ (5.5cm)
Height: 3 5/16″ (8.4cm)
Coil Rated Voltage: 6-110V DC
Operating Voltage: 12V DC
Operating Wattage: 15W
Contact Circuit Voltage: 80V DC
Loading Current: Max. 250V AC 500A
Environment temperature: -40??C – 85??C
Frequency: 10Hz-200Hz
Acceleration: 3.5g
Speed: 60-100 per min
Mechanical life: up to 100,000Ops
Electrical life: up to 50,000Ops
Operation Regulation: Continue
Installation direction: Random
Color: Black
Material: ABS + Aluminum Alloy
Weight: 720g
Feature:
Compatible with Wireless Remote Systems
Come with shatterproof sealed and corrosion resistant case
Solid heavy duty constructed
Pre-cutting mounting bracket for easy installation into control box
Fitment:
Compatible with 8000lb-12000lb winch with DC 12V (series wound and permanent magnet)
Note:
Professionals install is strongly recommended to avoid trouble caused by inexperienced installer!
Please note that there is a circuit switch (like a seesaw) inside the product, so when you shake the relay, there is a voice inside, not by the loose in the wiring or any defective issue. Thank you!
