ATV Accessories

Premium Quality Replacement Part
Rear Differential Rebuild Kit
For Yamaha Models:
Viking 700 YXM700 2014-2024
Viking 700 YXM700 Hunter 2014-2022
Viking 700 YXM700 Special 2014-2019
Viking 700 YXM700 Ranch 2019-2024
Viking VI 700 YXC700 2015-2024
Viking VI 700 YXC700 Hunter 2015-2022
Viking VI 700 YXC700 SE 2015-2017
Viking VI 700 YXC700 Ranch 2017-2024

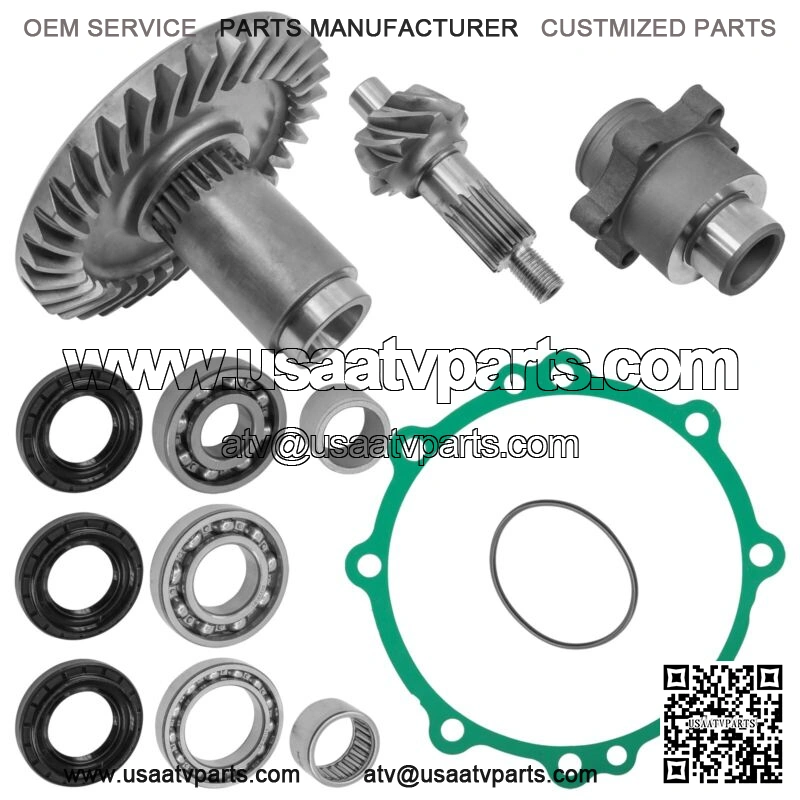

Order Includes:
1x Rear Differential Gear Ring & Pinion : 1XD-G6110-00-00 1XD-G6121-00-00
Gear
Outer Diameter : 158mm | 6.22 ”
Inner Diameter : 22.1mm | 0.87 ”
Height : 126.2mm | 4.96 ”
Number Of Teeth : 27 Teeth
Gear Shaft
Height : 122mm | 4.80 ”

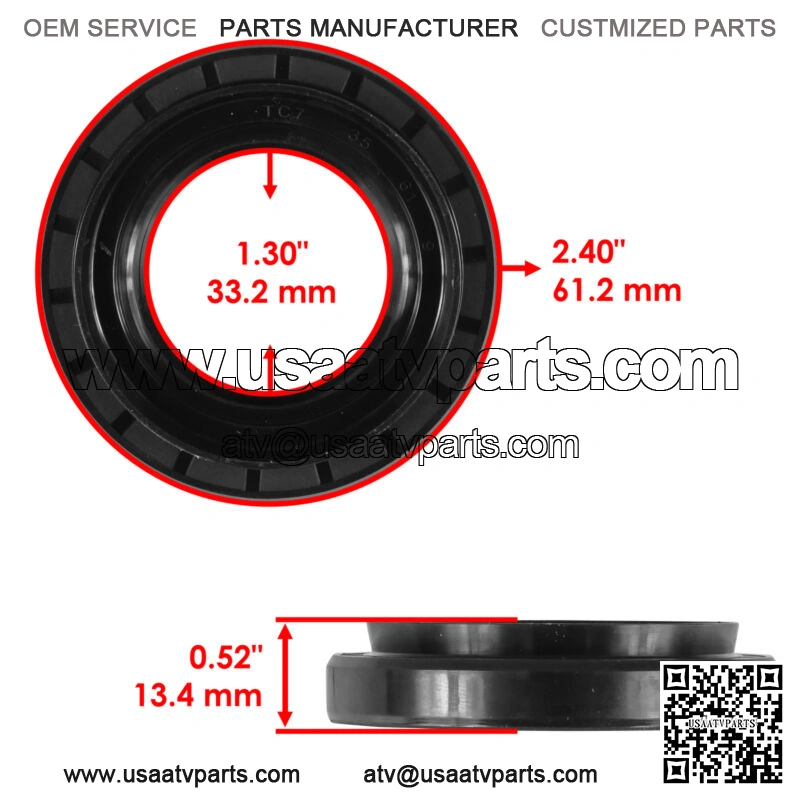

3x Seal : 1XD-E511B-00-00
Inner Diameter : 33.2mm | 1.30 ”
Outer Diameter : 61.2mm | 2.40 ”
Width : 13.4mm | 0.52 ”
1x O-Ring : 1XD-E1614-00-00

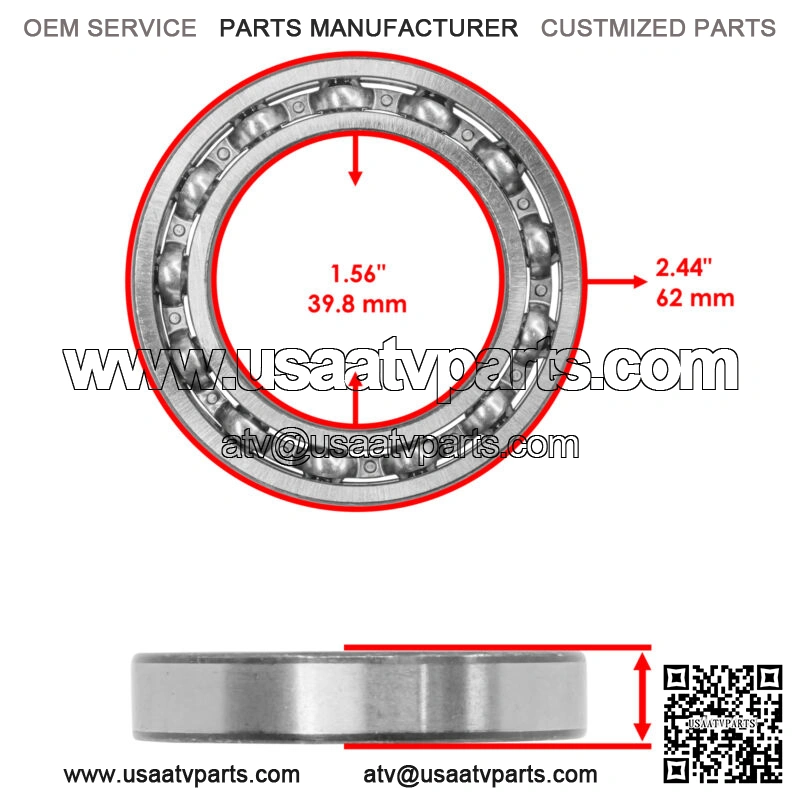

1x Drive Shaft Bearing : 1XD-E7051-00-00 1XD-E142B-00-00
Inner Diameter : 39.8mm | 1.56 ”
Outer Diameter : 62mm | 2.44 ”
Width : 12mm | 0.47 ”

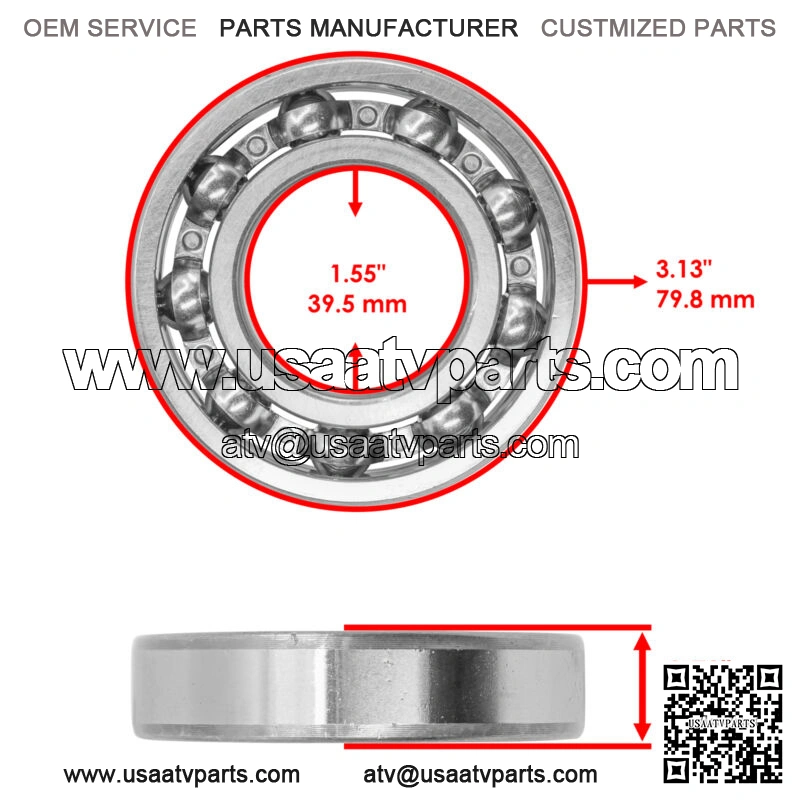

1x Drive Shaft Bearing : 1XD-E1429-00-00
Inner Diameter : 39.5 mm | 1.55 ”
Outer Diameter : 79.8 mm | 3.13 ”
Width : 18 mm | 0.70 ”

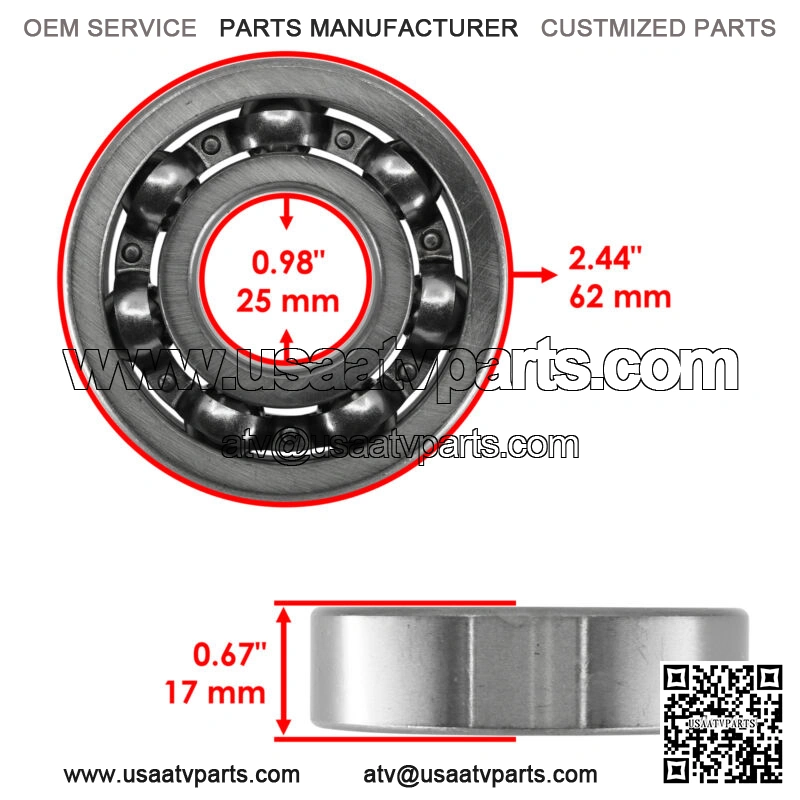

1x Bearing : 1XD-E142A-00-00 93306-30574-00
Inner Diameter : 25mm | 0.92 ”
Outer Diameter : 62mm | 2.44 ”
Width : 17mm | 0.67 ”
1x Drive Shaft Bearing : 1XD-E1428-00-00
Inner Diameter : 22.5 mm | 0.88 ”
Outer Diameter : 28 mm | 1.10 ”
Width : 15.8 mm | 0.62 ”
x Differential Gearbox Case Gasket : 1XD-G631A-00-00 1XDG631A0000
1x Rear Differential Coupler : 1XD-G6126-00-00
Length : 83.8mm | 3.29 ”
Height : 82.25mm | 3.23 ”
Inner Diameter : 25.5mm | 1.0 ”
14 Tooth
1x Rear Differential Bushing : 1XD-G5319-00-00
Inner Diameter : 17mm – 0.66 in
Outer Diameter : 22mm – 0.86 in
Width : 16.2mm – 0.63 in
