ATV Axles

Premium Quality Replacement PartWe strongly suggest comparing the posted picture to your faulty unit!
COMPLETE REAR LEFT and RIGHT
AXLE DRIVE SHAFT with BEARINGS and GASKET KIT
For KAWASAKI Models:Mule 3000 KAF620-G 2004-2009Mule 3010 KAF620-E 4×4 2004-2008Mule 3010 Hardwoods Green HD KAF620-H 4X4 2004-2008Mule 3010 Diesel KAF950-B 4X4 2004-2008Mule 3010 Trans Diesel KAF950-C 4X4 2007-2008Mule 3010 Trans KAF620-J 4X4 2005-2008Mule 3010 Trans Hardwoods Green HD KAF620-K 4X4 2005-2008Mule 4000 KAF620-P 4X4 2009-2023Mule 4000 Trans KAF620-W 4X4 2018-2020Mule 4010 KAF620-M 4×4 2009-2023Mule 4010 Hardwoods Green HD KAF620-N 4×4 2009Mule 4010 Trans Diesel Realtree APG HD KAF950-H 4×4 2010Mule 4010 Trans Realtree APG HD KAF620-S 4×4 2010-2012Mule 4010 Trans KAF620-S Camo 4×4 2014-2021Mule 4010 Diesel KAF950-F 4×4 2009-2013Mule 4010 Trans Diesel KAF950-G 4×4 2009-2013Mule 4010 Trans KAF620-R 4×4 2009-2021Mule 4010 KAF620-T 4×4 SE 2016-2018Mule 4010 KAF620-V 4×4 SE 2016-2018Mule 4010 Trans KAF620-X 4×4 2018Mule 4010 KAF620Z 4×4 2022-2023Mule 4010 Trans KAF620B 4×4 2022-2023Mule 4010 Trans KAF620C 4×4 2022-2023Mule 4010 Trans KAF620D 4×4 2022-2023
Part Numbers:
Axle Drive Shaft
39158-112039158-1119
Boot Drive Shaft
49006-1257
Ball Bearing
92045-1208 (6006) 30x55x13
Wheel Bearing
92045-0102 ( DAC2552W) 25x52x42
Gasket Drive Shaft Cover
11060-1251
Cliper Type-C
480J2800
Dimensions:

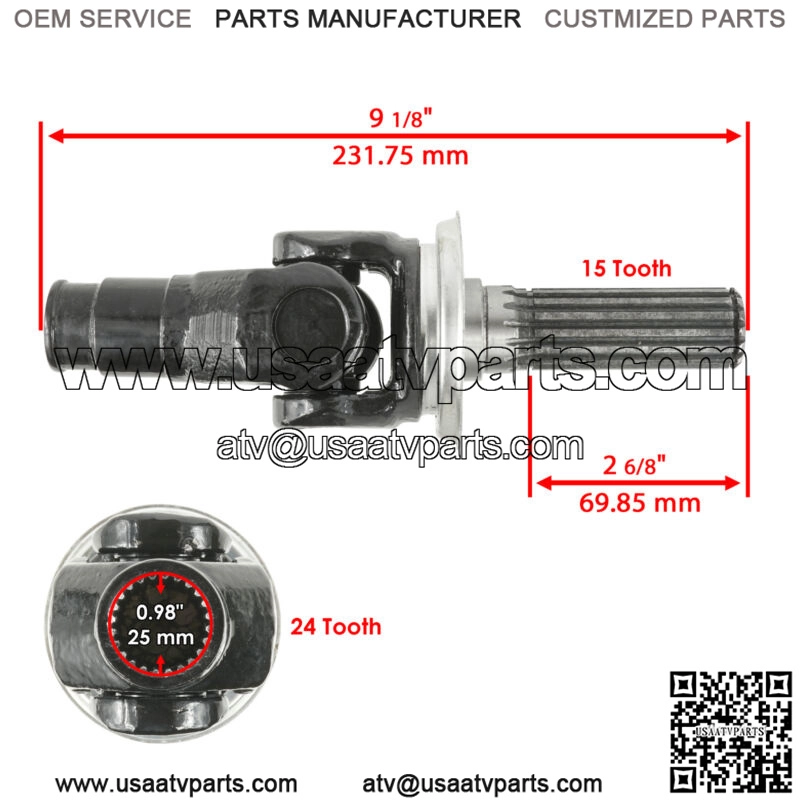

Length:18 2/8″ | 463.50 mm (24 Tooth)Length: 9 1/8″ | 231.75 mm (15 Tooth)Tooth Inner Diameter: 0.98″ | 25 mmBall Bearing: 30 x 55 x 13Wheel Bearing: 25 x 52 x 42Order Includes:
4x Propeller Drive Shaft
4x Bearing4x Boot2x Circlip2x Gasket
**
