ATV Gasket

Product
Specification:

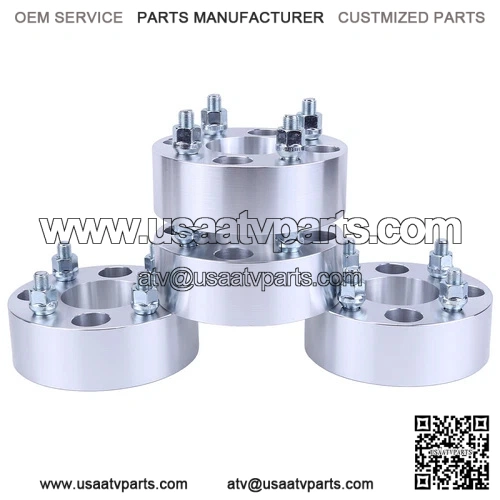

About the Adapter
Adapter Thickness: 2??
Adapter Bolt Pattern Fit to Hub: 4x110mm
Adapter Bolt Pattern Fit to Wheel: 4x110mm
Adapter Center Bore: 68mm
Adapter Hub Ring: No
Adapter Overall Diameter: 150mm
Adapter Stud Thread Pitch: M12x1.25
Adapter Stud Grade: 10.9
Adapter Color: Chrome or Black Depending on Current Batch
Adapter Material: Cold Forged 6061 T6 Grade Aluminum
Requirements of the Vehicle Specification
Required Vehicle Hub Bolt Pattern: 4x110mm
Required Vehicle Hub Center Bore: 68mm or smaller
Required Vehicle Hub Stud Thread: Varies
Min Required Vehicle Fender Gap: 2??
Max Vehicle Hub Stud Length: 2??
*If your stud is longer than 2?? you will need to trim it to use the adapter.
Requirements of the Wheel Specification
Required Vehicle Wheel Bolt Pattern: 4x110mm
Required Vehicle Wheel Center Bore: 68mm or smaller
Required Vehicle Wheel Lug Thread: M12x1.25
Required Vehicle Wheel Lug Nuts Hex: Based on your Wheel
What You Will Receive:
4 pcs Wheel Adapters
What You May Need As Extra:
16 pcs Open Lugs fit to your Hub
16 pcs Wheel Lugs to Fit Your Wheel
