ZFORCE 500 800 800EX 1000 2014-2022

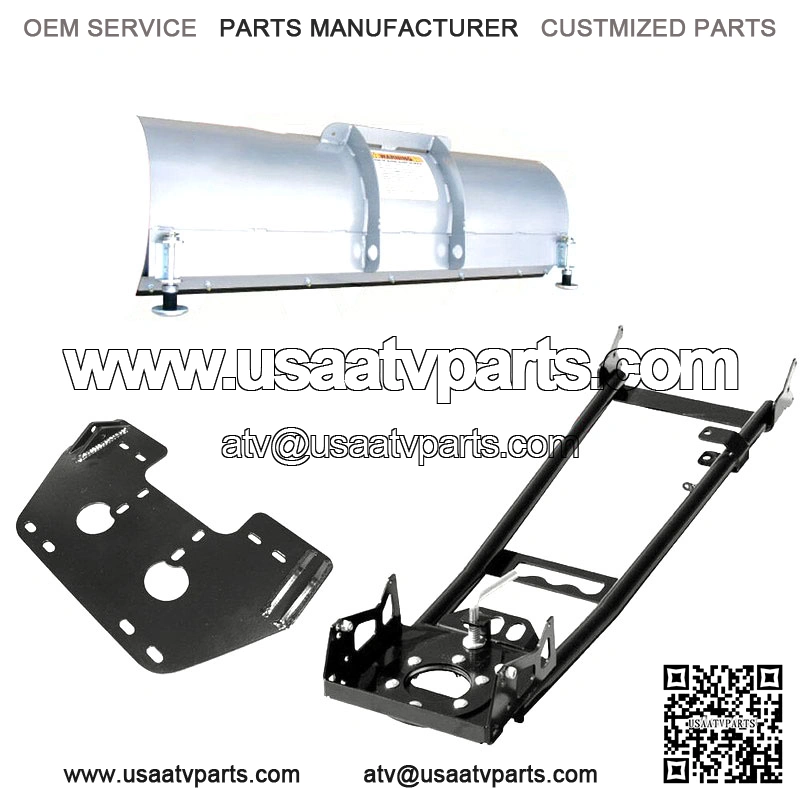

Mount Kit Details:

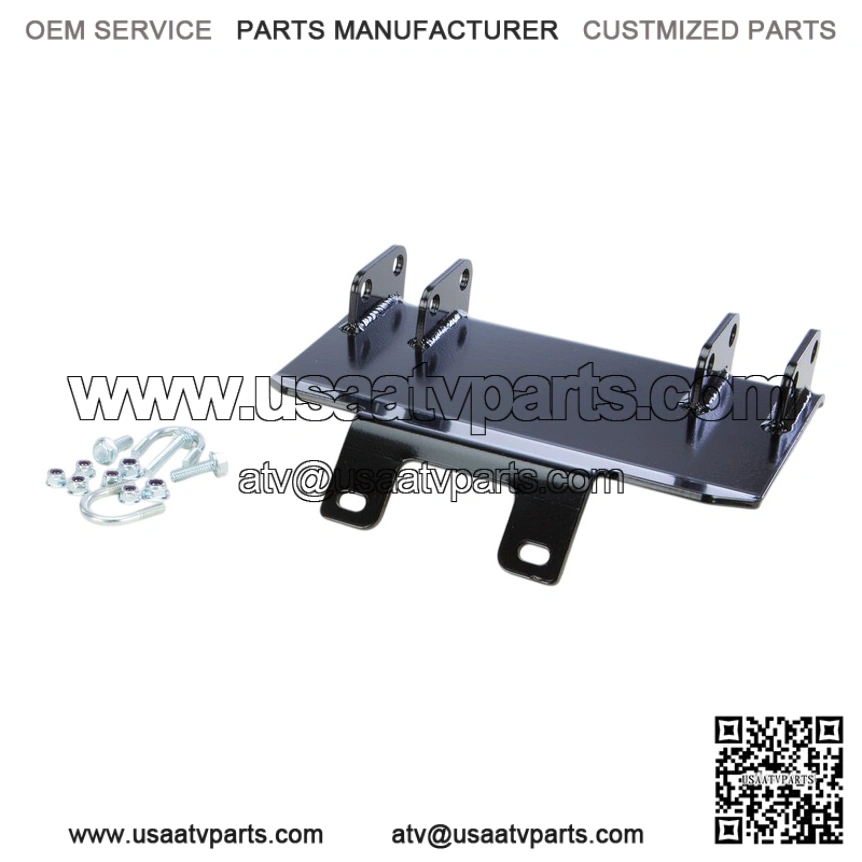

Front mount System
Plate constructed from 3/16″ grade 50 steel
All pin tabs are constructed from 1/4″ thick grade 50 steel
All plow tabs are tapered to help reduce hang-ups while trail riding
Powder coated black for supreme durability
Complete installation instructions included
All mounting hardware included
Straight Blade Specifications:
Pushes snow straight ahead or to the sides up to 25 degrees
Added gussets for the wider width
The 66″ & 72″ blades include a 7″ high 2-ply top rubber flap
Measures 16?? Vertical blade face height with an approximate 21?? height with snow flap
Fully-adjustable blade skids with bolt-on brackets
Heavy duty 3″-diameter grade-50 steel skid plates
Blade Constructed of 11 ga steel
3/16″ Grade 50 Ribbing for a strong bolt-up to the Swivel Tube
Unlike all other Plow competitors our Plows are metal bead blasted before they are powder coated Metallic Silver for supreme durability
2-Sided 3/16″ x 3.00″ Grade 50 Steel Wear Bar
Wear Bar attached with Heavy Duty Grade 8 Bolts
Push Tube Details:
Improved Manufacturing
Easier Install For All Plow Accessories
Added 2.5″ Of Overall Length
Works With All KFI Plows
Front Mount Design with 30″+ of lift height
Heavy Duty 1-1/2″ 12 Gage Square Steel Tubing
Heavy Duty 1/4″ Thick 1-1/2″ Diameter Grade 50 Pivot Bushings
6″ Diameter POM Injection Molded Rotator Bushing
Easy-Pull Pin Blade angle adjustment
Multi-position Plow Lift Bracket
6 five degree blade pitch adjustments
3 blade angle positions that rotate the blade up to 25 Degrees
Unlike all other Plow competitors our tubes are metal bead blasted before they are powder coated for the best possible finish prep.
Powder Coated Black for supreme durability
Complete installation instructions included
All mounting hardware included
