Clutch Friction Steel Plates Kit for Honda Fourtrax 200 TRX200SX 1986-1988

SKU: MCP.01610 Category: Tags ,

Spread the love
Share on facebook
Share on twitter
Share on linkedin
Share on pinterest
Share on whatsapp
Share on telegram
Share on tumblr

Premium Quality Replacement Part
CLUTCH FRICTION / STEEL PLATES SPRINGS and GASKET KITFor HONDA Models:Fourtrax 200 TRX200SX 1986-1988
Fourtrax 200 TRX200 1990-1991
Fourtrax 200 TRX200D 1991-1997
Part Number:
Clutch Friction Plate
22201-107-000 22201-GF6-00 22201-KA3-700 22201-KB4-670 22201-166-000
Clutch Steel Plate
22321-KE8-000 22321-HM8-A40
Clutch Spring
22401-KE7-000, 22401-HB3-000, 22401-HB3-010, 22401-KM3-000
Clutch Cover Gasket
11393-HB3-000 11393-HB3-010 11393-HB3-306 11393-HF1-910
Dimensions:

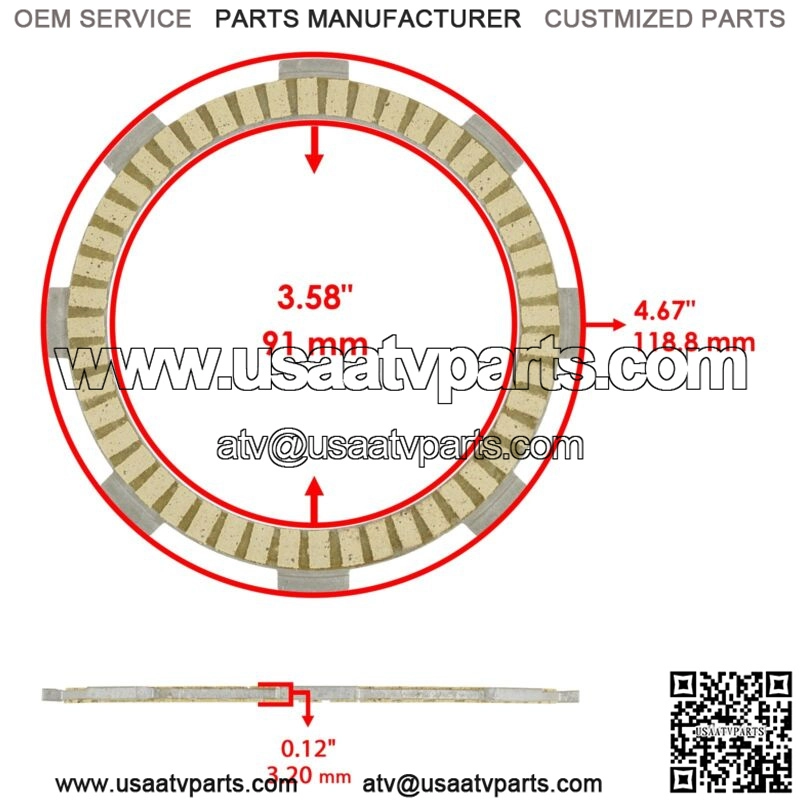

Clutch Friction Plate Thickness: 0.12″ | 3.20mm
Clutch Steel Plate Thickness: 0.05″ | 1.5mm

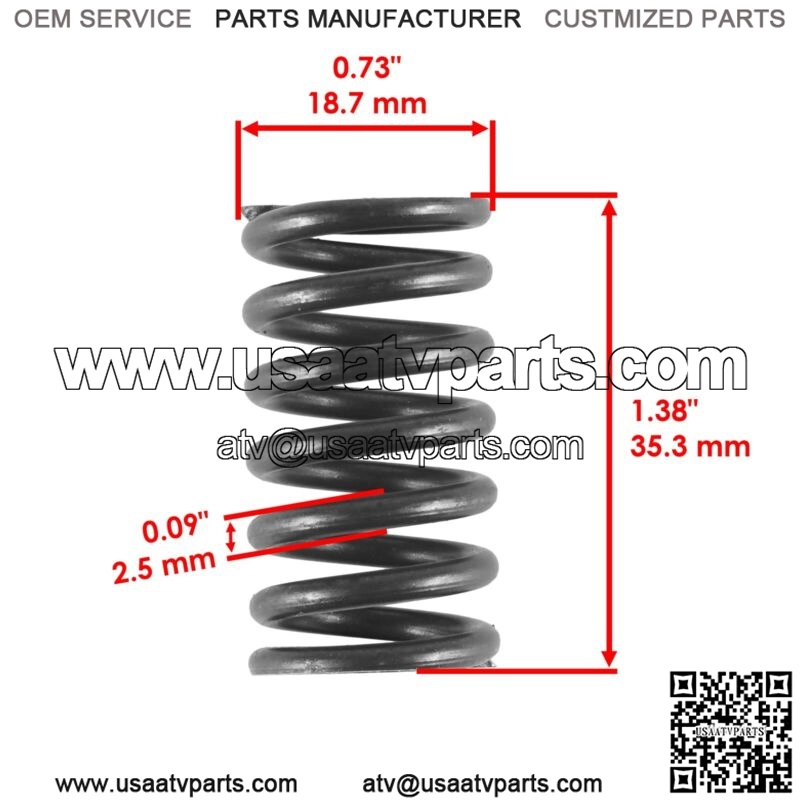

Clutch spring Length: 1.38″ | 35.3mm
Clutch spring Width: 0.73″ | 18.7mm
Clutch spring Thickness: 0.09″ | 2.5mm

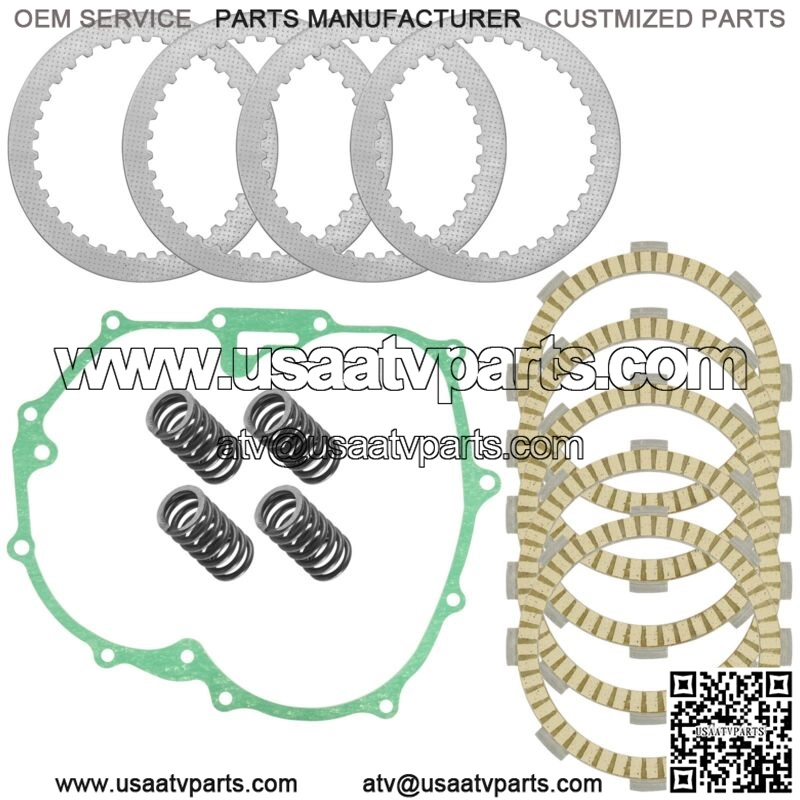

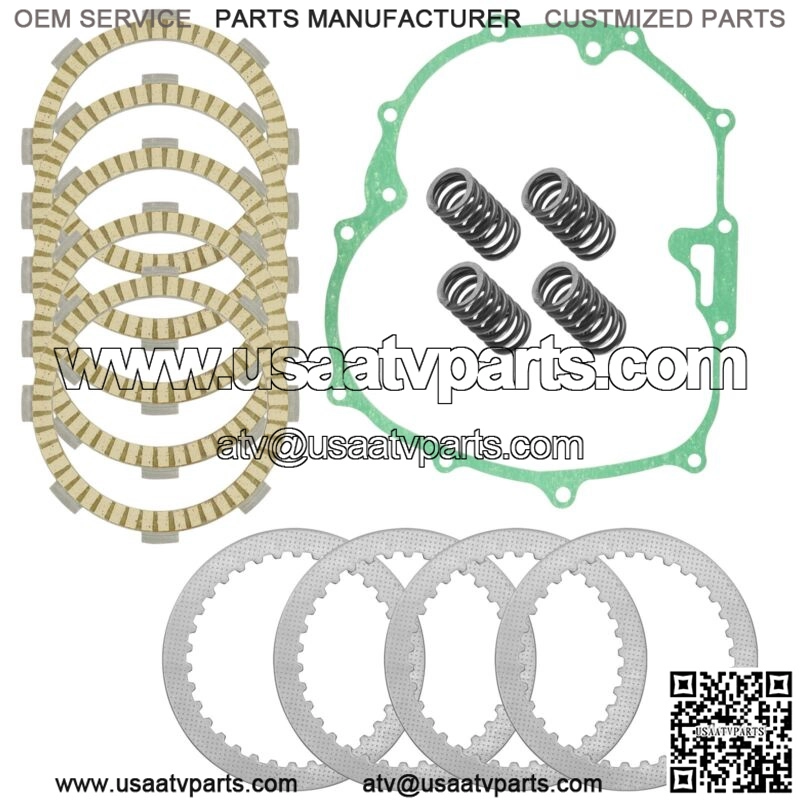

Order Includes:
5x Clutch Friction Plate
4x Clutch Steel Plate
4x Clutch Spring
1x Gasket
**
