Premium Quality Replacement Part
CLUTCH FRICTION STEEL PLATES
SPRING AND GASKET KIT
For YAMAHA Models:WR250F 2002-2013
Part Number:
Clutch Friction Plates
5DH-16321-00-00
3XJ-16321-00-00
Clutch Steel Plates
5NL-16325-10-00
5NL-16325-00-00
Clutch Spring
90501-220A0-00
Clutch Gasket
5NL-15453-00-00 5NL-15453-10-00 / Outer
5NL-15462-00-00 / Inner
Dimensions:
Clutch Friction Plate Thickness 0.11″ | 3 mm
Clutch Steel Plate Thickness 0.05″ | 1.32 mm
Clutch Steel Plate Thickness 0.09″ | 2.3 mm
Clutch Spring Width: 0.65″ | 16.7 mm
Clutch Spring Height: 1.41″ | 36 mm
Clutch Spring Thickness: 0.08″ | 2.2 mm

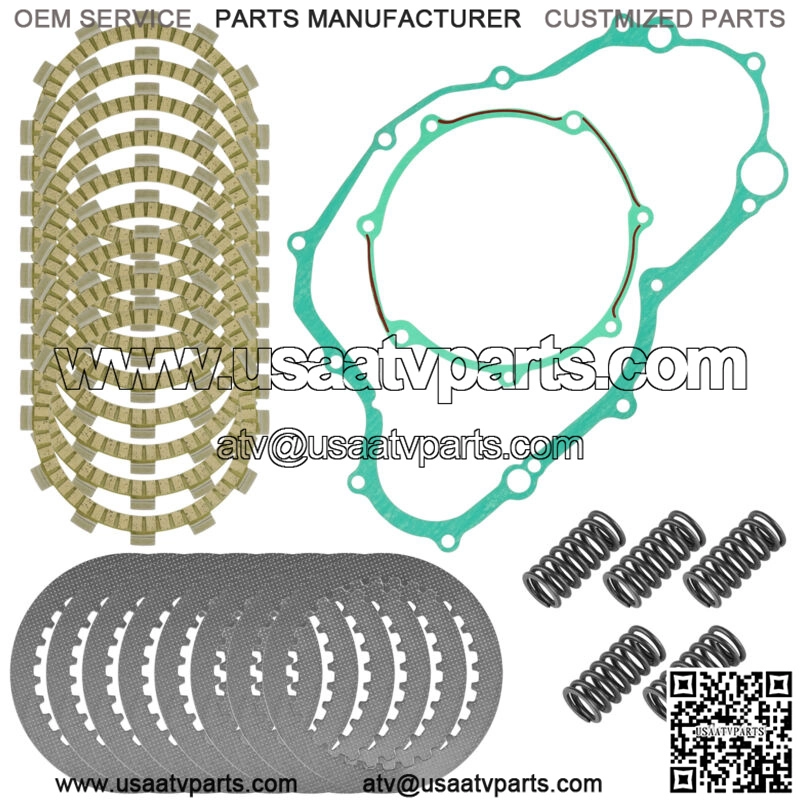

Order Includes:9 x Clutch Friction Plates8 x Clutch Steel Plates5 x Clutch Spring2 x Clutch Gasket
**
