ATV Axles

Premium Quality Replacement Part

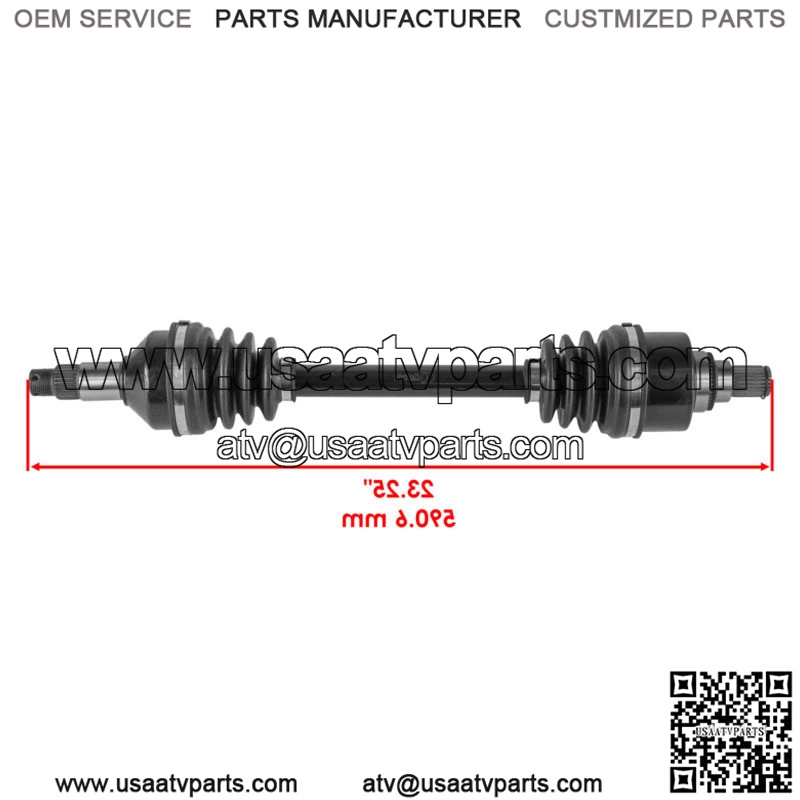

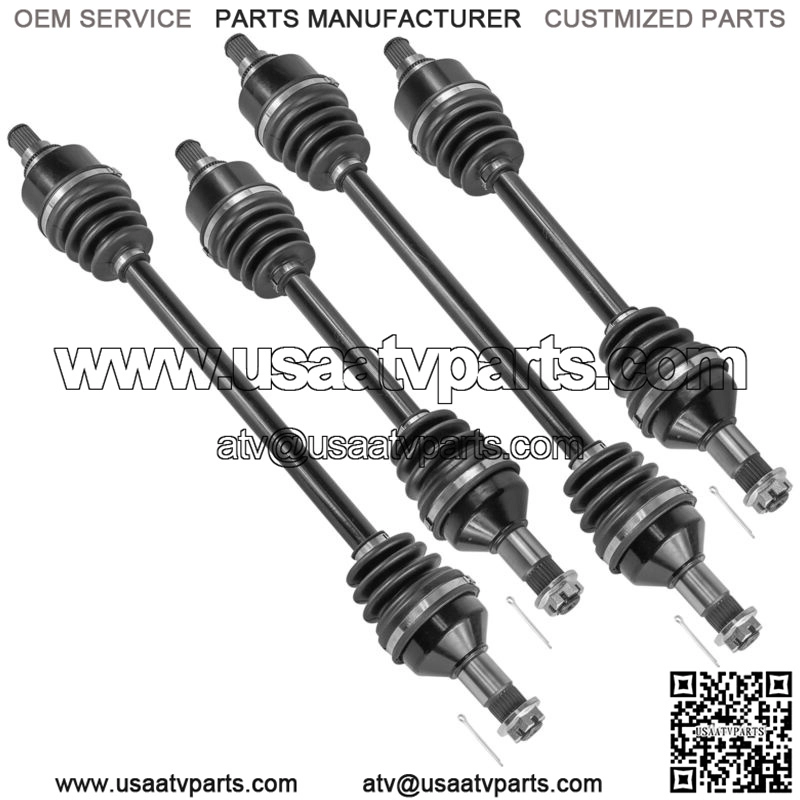

Front And Rear CV AxlesFor Arctic Cat Models:Wildcat Sport 4×4 LTD XT SE 2015-2019Order Includes:2x Front Left Or Right CV Axles : 2502-354 2502-151
Length : 590.6 mm | 23.25 ”

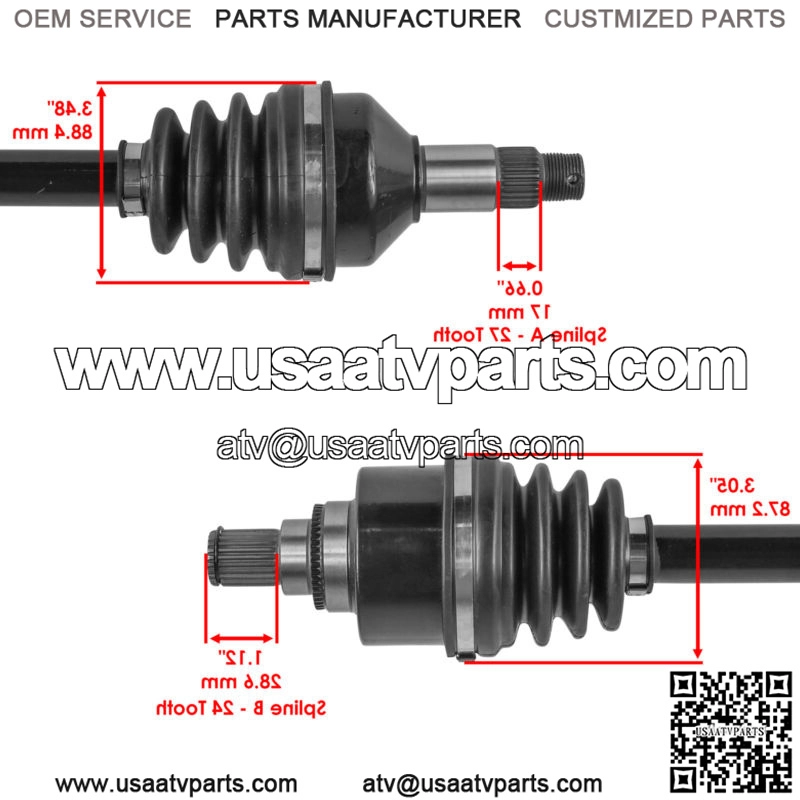

Spline A Length : 17 mm | 0.66 ”
Spline A Boot Width : 88.4 mm | 3.48 ”
Spline A – 27 Tooth
Spline B Length : 28.6 mm | 1.12 ”
Spline B Boot Width : 87.2 mm | 3.05 ”
Spline B – 24 Tooth

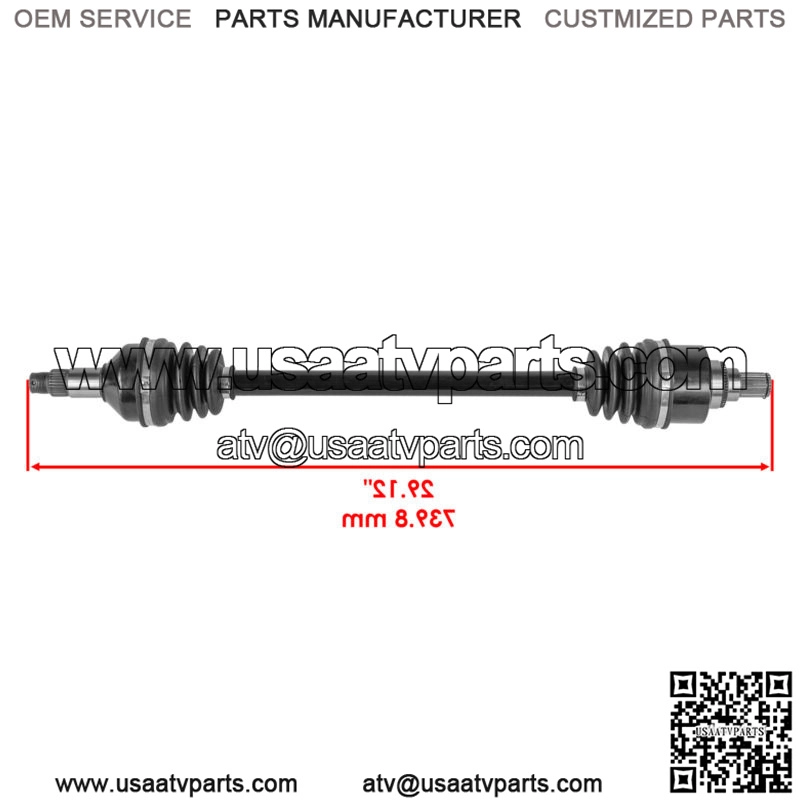

2x Rear Left Or Right CV Axles : 2502-355 2502-152Length : 739.8 mm | 29.12 ”

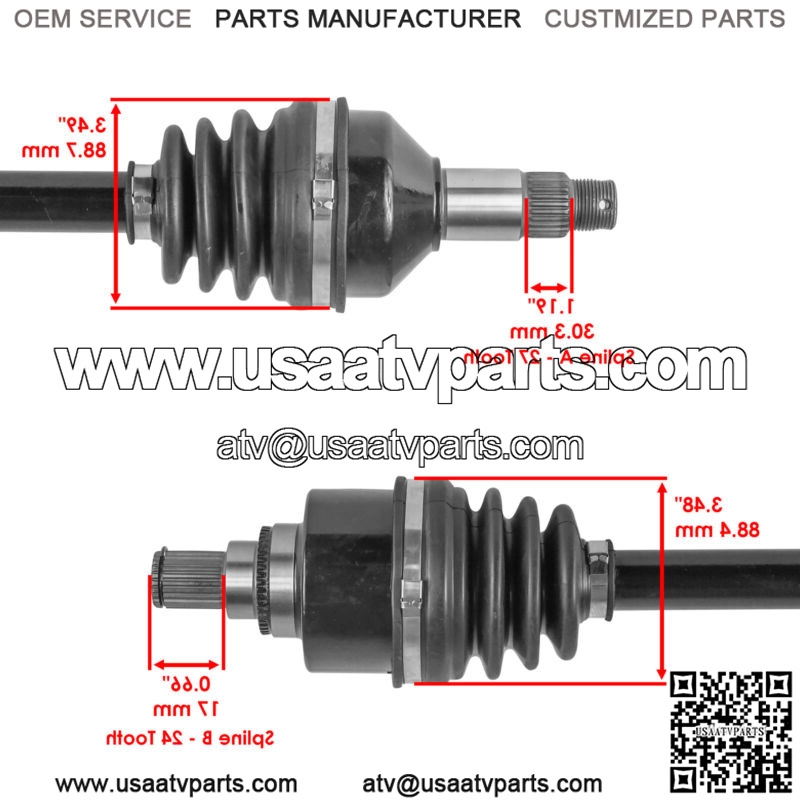

Spline A Length : 30.3 mm | 1.19 ”
Spline A Boot Width : 88.7 mm | 3.49 ”
Spline A – 27 Tooth
Spline B Length : 17mm | 0.66 ”
Spline B Boot Width : 88.4 mm | 3.48 ”
Spline B – 24 Tooth
**
