Premium Quality Replacement Part
Front And Rear CV AxlesFor Kawasaki Models:
Teryx KRF800 2017-2023Teryx KRF800 LE 2017-2021
Order Includes:
2x Rear Left Or Right CV Axles : 59266-0715
Length : 714.4 mmSpline A Length : 47.5 mm | 1.87 “Spline A Boot Width : 87.4 mm | 3.44″Spline A : 29 Tooth
Spline B
Length : 29.8 mm | 1.17Spline B Boot Width : 92.2 mm | 3.62Spline B : 29 Tooth
1x Front Left CV Axle : 59266-0047, 59266-0707
Length : 730.2 mm | 28.7 ”

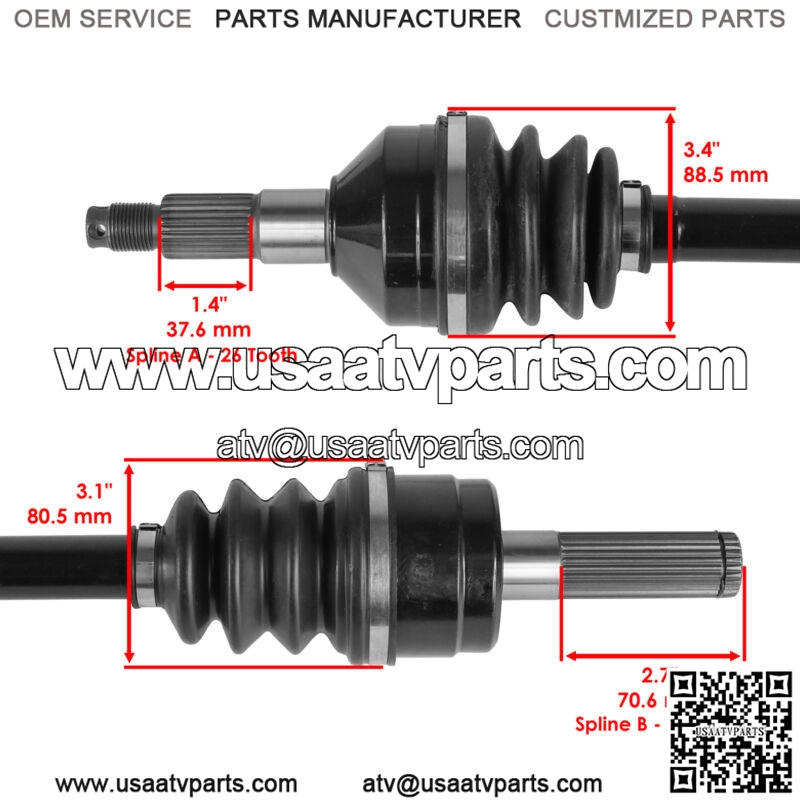

Spline A Length : 37.6 mm | 1.4 ”
Spline A Boot Width : 88.5 mm | 3.4 ”
Spline A – 26 Tooth
Spline B Length : 70.6 mm | 2.7 ”
Spline B Boot Width : 80.5 mm | 3.1 ”
Spline B – 26 Tooth
1x Front Right CV Axle : 59266-0047, 59266-0707
Length : 698.5 mm | 27.5 ”
Spline A Length : 36.14 mm | 1.42 ”
Spline A Boot Width : 89.5 mm | 3.52 ”
Spline A – 26 Tooth
Spline B Length : 27.9 mm | 1.09 ”
Spline B Boot Width : 80.4 mm | 3.16 ”
Spline B – 26 Tooth
