Premium Quality Replacement Part
Exhaust & Intake Valve Kit for Suzuki 12912-29F00 12911-29F00 09289-05011
For Suzuki Models:
DRZ400 2000-2004
DRZ400E 2000-2007
DRZ400S 2000-2009 2011-2019
DRZ400SM 2005-2008 2013-2019 2021-2022

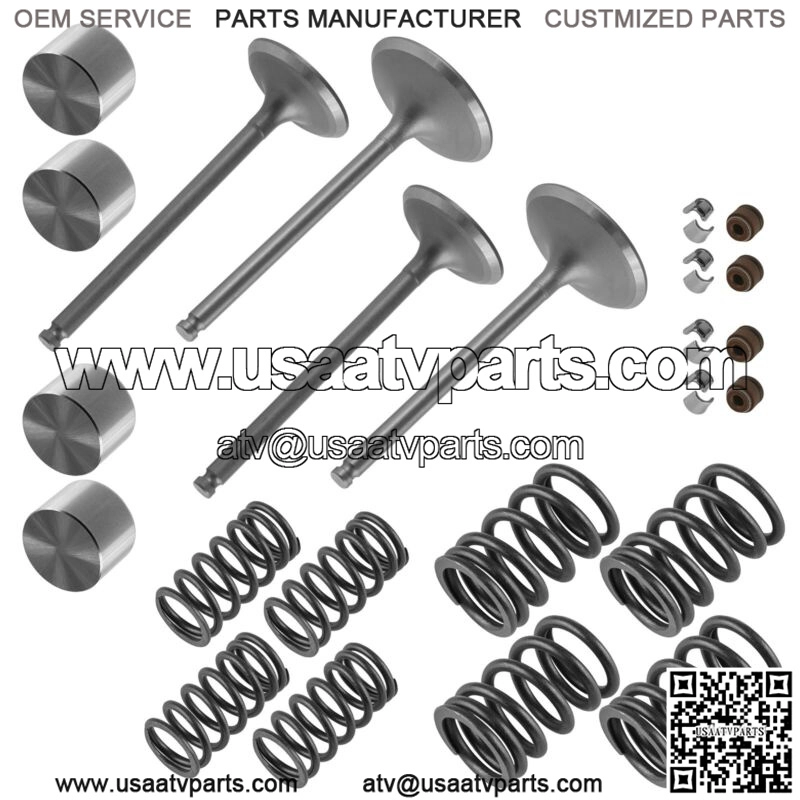

Order Includes:

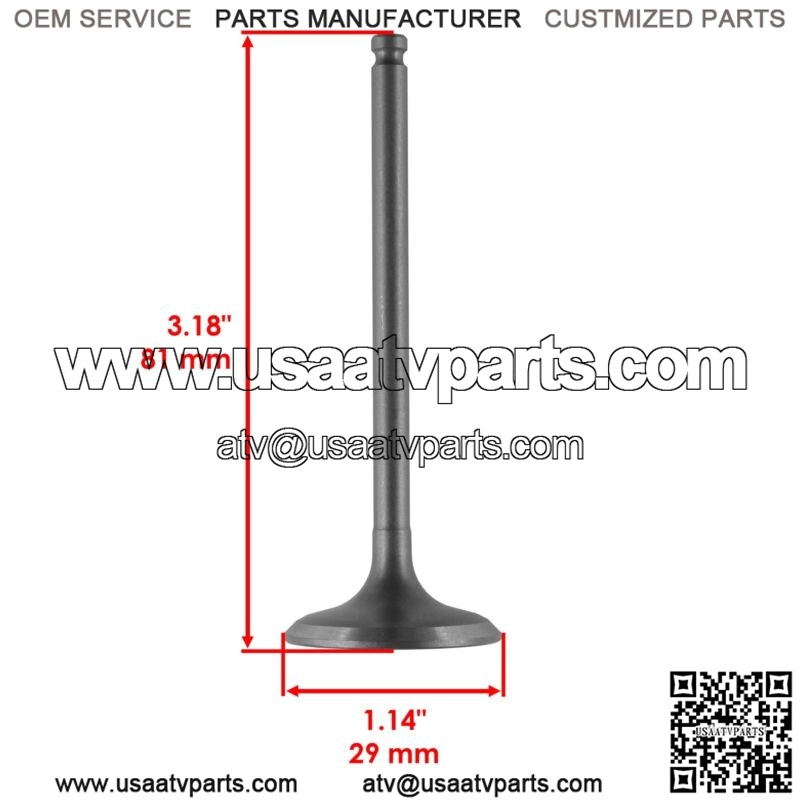

2 x Exhaust Valve: 12912-29F00
Exhaust Valve Length: 1.14″ | 29.0 mm
Exhaust Valve Diameter: 3.18″ | 81.0 mm

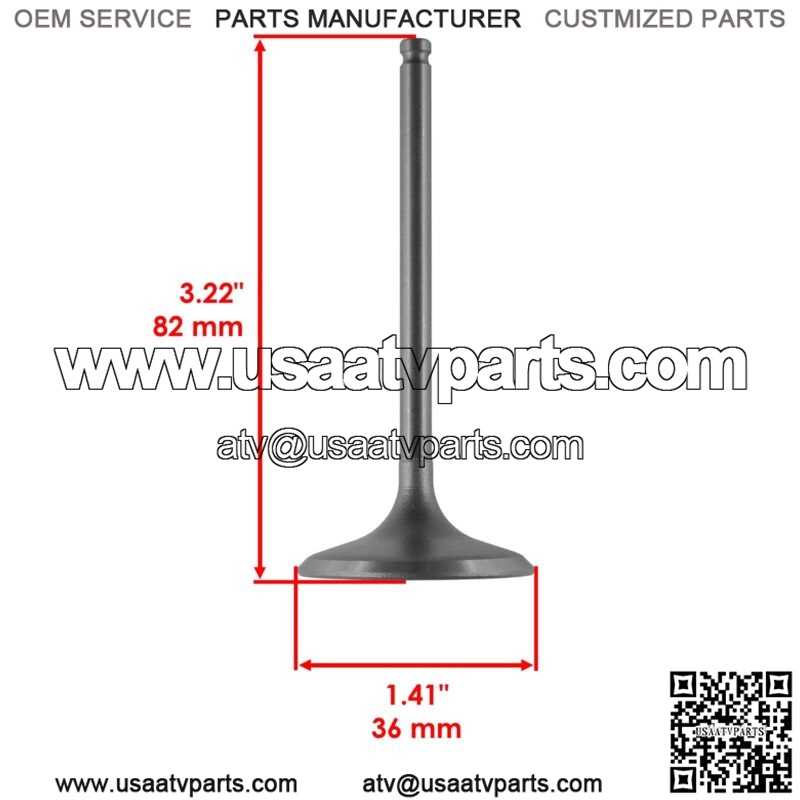

2 x Intake Valve: 12911-29F00
Intake Valve Length: 1.41″ | 36.0 mm
Intake Valve Diameter: 3.22″ | 82.0 mm

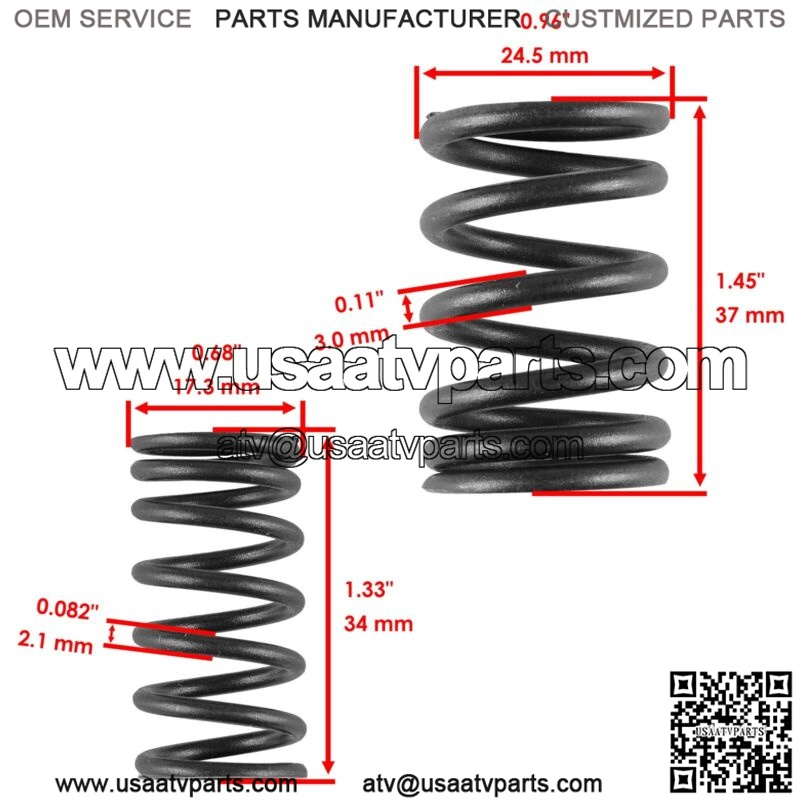

4 x Valve Spring Set: 12920-29F00
Outer Valve Spring Width: 0.96″ | 24.5 mm
Outer Valve Spring Height: 1.45″ | 37.0 mm
Outer Valve Spring Thickness: 0.11″ | 3.0 mm
Inner Valve Spring Width: 0.68″ | 17.3 mm
Inner Valve Spring Height: 1.33″ | 34.0 mm
Inner Valve Spring Thickness: 0.082″ | 2.1 mm
4 x Valve Stem Seal: 09289-05011
Length: 0.39″ | 10.0 mm
Width: 0.33″ | 8.5 mm
Inner Diameter: 0.17″ | 4.5 mm
Outer Diameter: 0.31″ | 8.0 mm
8 x Valve Cotter: 12932-24F00
Width: 0.15 ” | 4.0 mm
Length: 0.31 ” | 8.0 mm
Height: 0.25 ” | 6.4 mm
4 x Valve Tappet: 12891-02F00 12891-02F10
Height: 0.76″ | 19.5 mm
Inner Diameter: 1.0″ | 26.0 mm
Outer Diameter: 1.1″ | 28.0 mm
**
