Premium Quality Replacement Part
Exhaust Valve kit for Yamaha 5GH-12121-00-00 22U-12113-00-00 1UY-12114-01-00
For Yamaha Models:
Kodiak 400 2×4 4×4 2002-2006
Kodiak 450 4×4 2003-2006 2018-2022
Rhino 450 YXR450 4×4 2006-2009
Wolverine 450 YFM450 4×4 2006-2010
Grizzly 400 YFM400 4×4 2007-2008
Grizzly 450 2007-2014

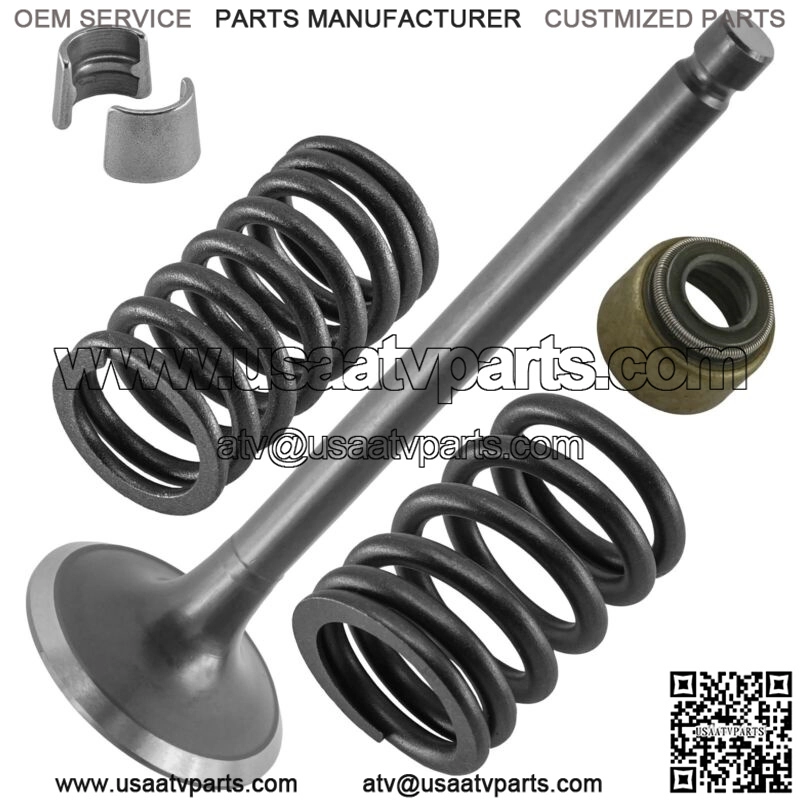

Order Includes:

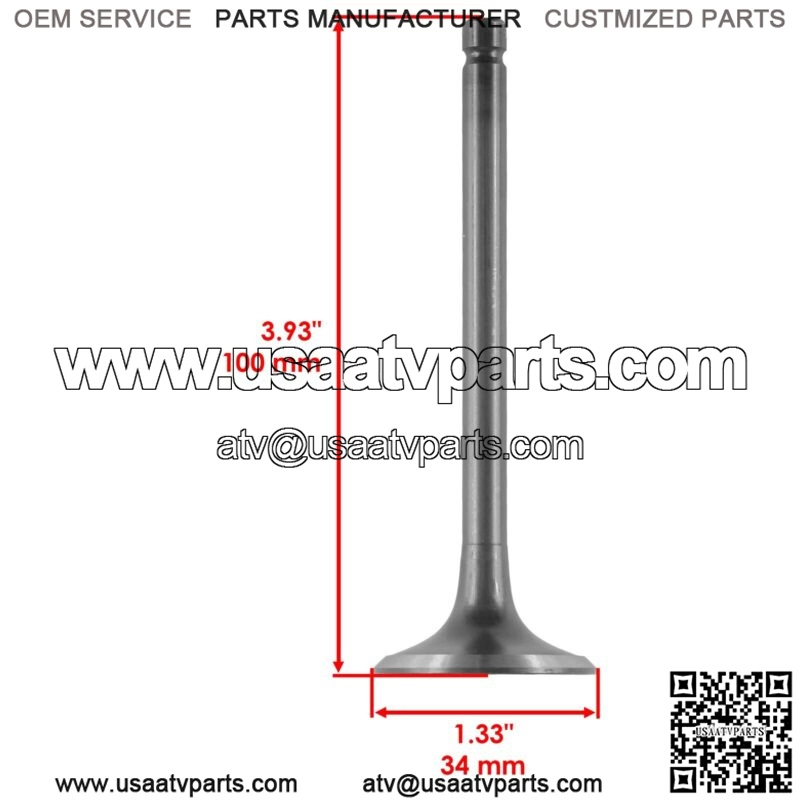

1 x Exhaust Valve: 5GH-12121-00-00
Exhaust Valve Length: 1.33″ | 34.0 mm
Exhaust Valve Diameter: 3.93″ | 100.0 mm

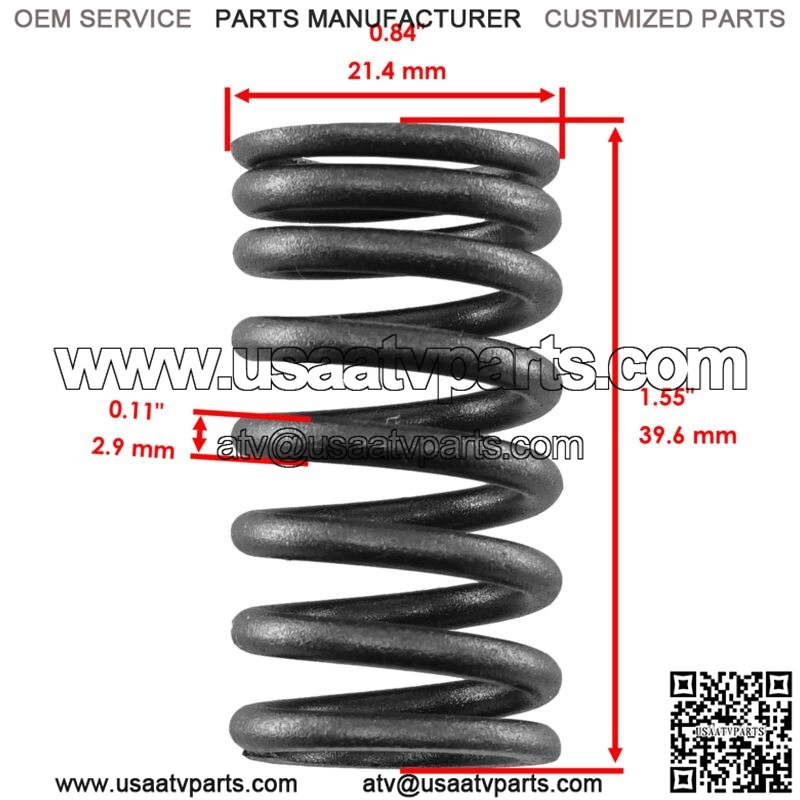

1 x Inner Valve Spring: 22U-12113-00-00
Width: 0.84″ | 21.4 mm
Height: 1.55″ | 39.6 mm
Thickness: 0.11″ | 2.9 mm

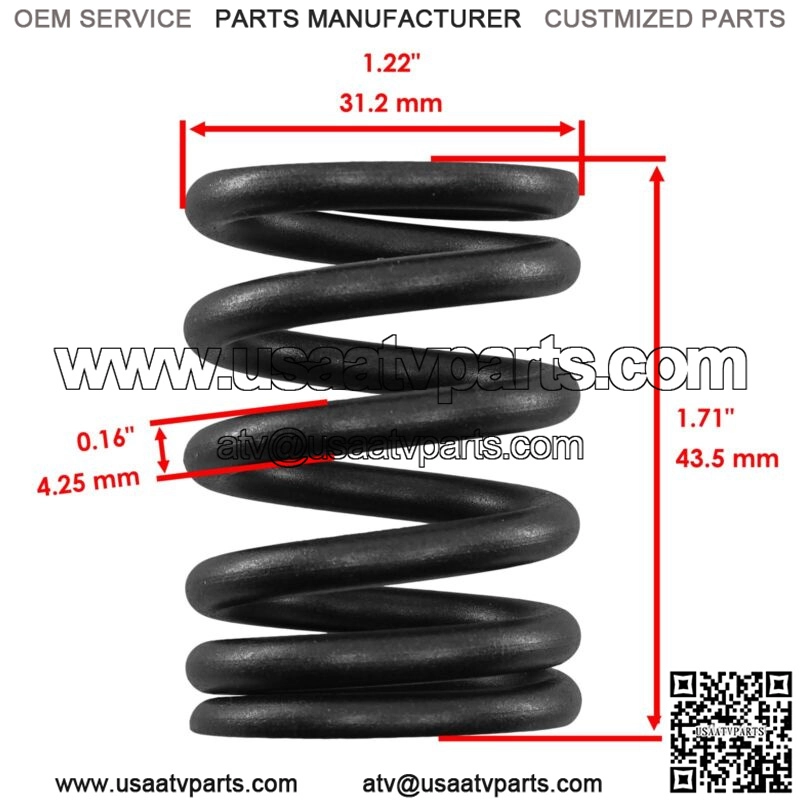

1 x Outer Valve Spring: 1UY-12114-01-00
Width: 1.22″ | 31.2 mm
Height: 1.71″ | 43.5 mm
Thickness: 0.16″ | 4.25 mm

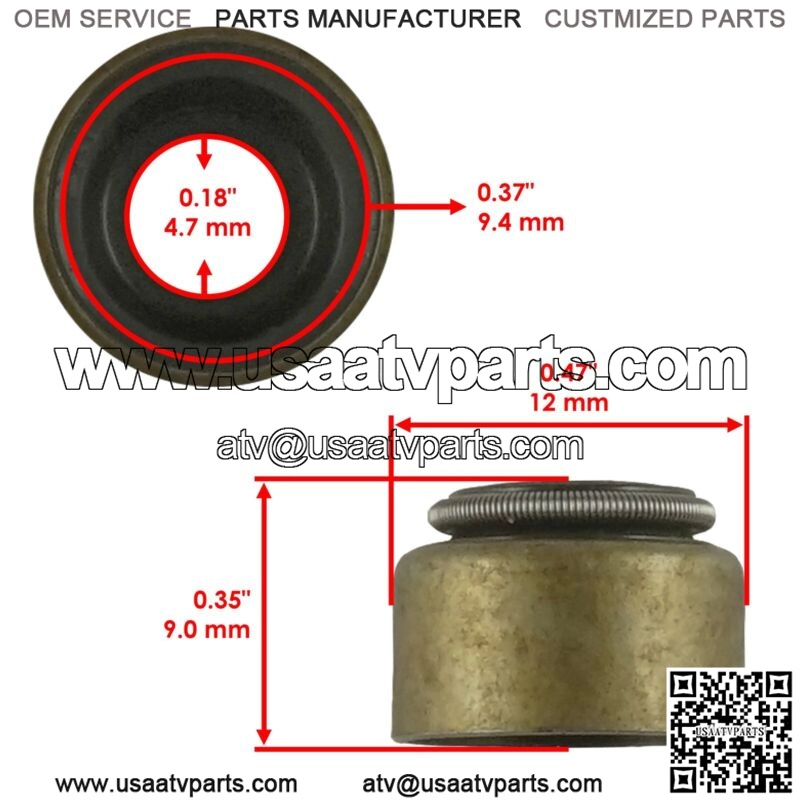

1 x Valve Stem Seal: M01-12129-00-00
Length: 0.47″ | 12.0 mm
Width: 0.35″ | 9.0 mm
Inner Diameter: 0.18″ | 4.7 mm
Outer Diameter: 0.37″ | 9.4 mm
2 x Valve Cotter: 1J7-12118-00-00
Width: 0.16 ” | 4.2 mm
Length: 0.37 ” | 9.5 mm
Height: 0.27 ” | 7.0 mm
**
