Fit for Honda FourTrax 300 TRX300FW 4×4 1988-2000
Part Number: 42200-HC5-003, 42300-HC5-003
Inboard CV joint spline count: 20, Outboard CV joint spline count: 21
Placement in Vehicle: Front Left and Right
Housings forged with grease channels provide bearing cages with increased lubrication to prevent overheating at higher angles of operation
Description
CV axle shaft transmits the power of the engine to the drive box, which is then transmitted to the axle by the drive box, effectively drive the ATV to make it run better and easy to operate
Application
for Honda FourTrax 300 TRX300FW 4×4 1988-2000 compatibility
Specification
Inboard CV joint spline count: 20
Outboard CV joint spline count: 21
INNER CV joint diameter: 62mm
OUTER CV joint diameter: 64.2mm
Placement in Vehicle: Front Left or Right
Material: Steel
Package Includes:

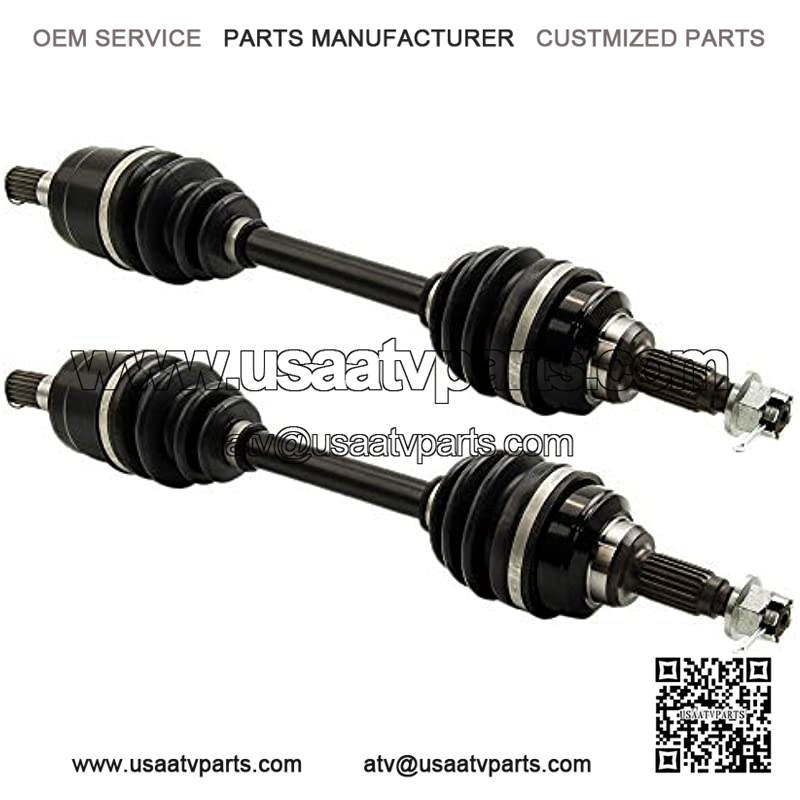

2 x Front Left / Right CV Axle
2 x Castle Nuts
2 x Cotter Pins
Feature
1. Allows operation angle up to 45 degree2
2. Housings forged with grease channels provide bearing cages with increased lubrication to prevent overheating at higher angles of operation
3. Joints start with precision hot forged mold and then are cold forged to add exceptional strength that will exceed OEM
4. High Performance: Made of high quality metal material, not easy to break,And conform to strict quality control standards, this ATV drive shaft assembly is durable and sturdy, high level of accuracy and sensitivity, enhance safety of your vehicle
5. High Quality: Superior material for reliability and maximum durability
6. Having passed dynamic balance test before shipping, it is reliable to use, easy for operation
