ATV Axles

Premium Quality Replacement Part
Front Upper Left & Right Control Arm Pivot Shaft
Compatible with Polaris Models:
RZR 900 50 inch 2015-2016
RZR 4 900 2015-2016
RZR S 900 60inch 2015-2016
RZR XP Turbo 2016
RZR XP 4 Turbo 2016
RZR XP 1000 2014-2016
RZR XP 4 1000 2014-2016
RZR S 1000 60inch 2016
General 1000 EPS 2016
Order Includes:

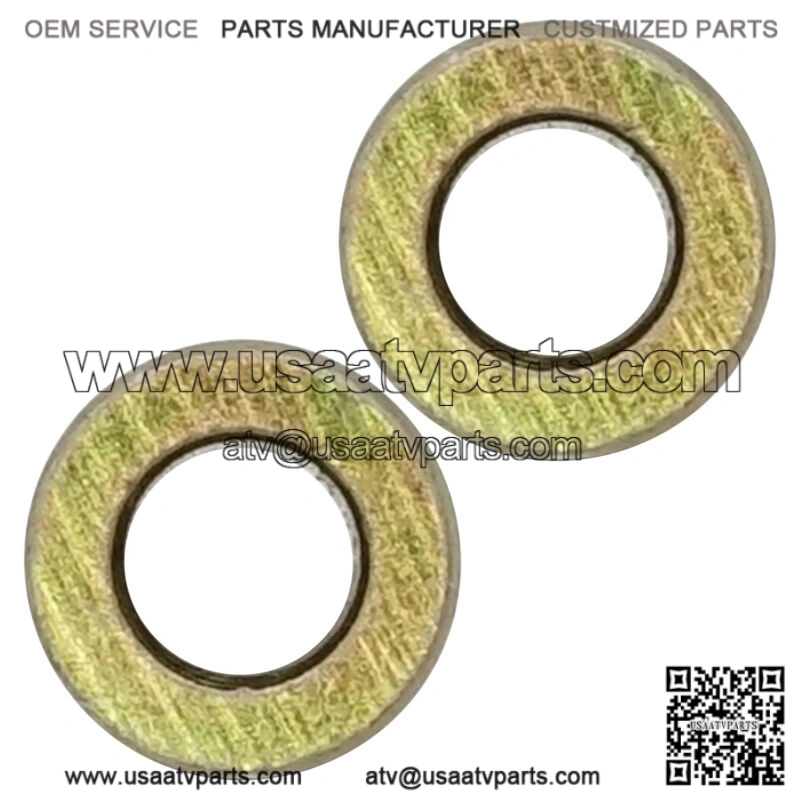

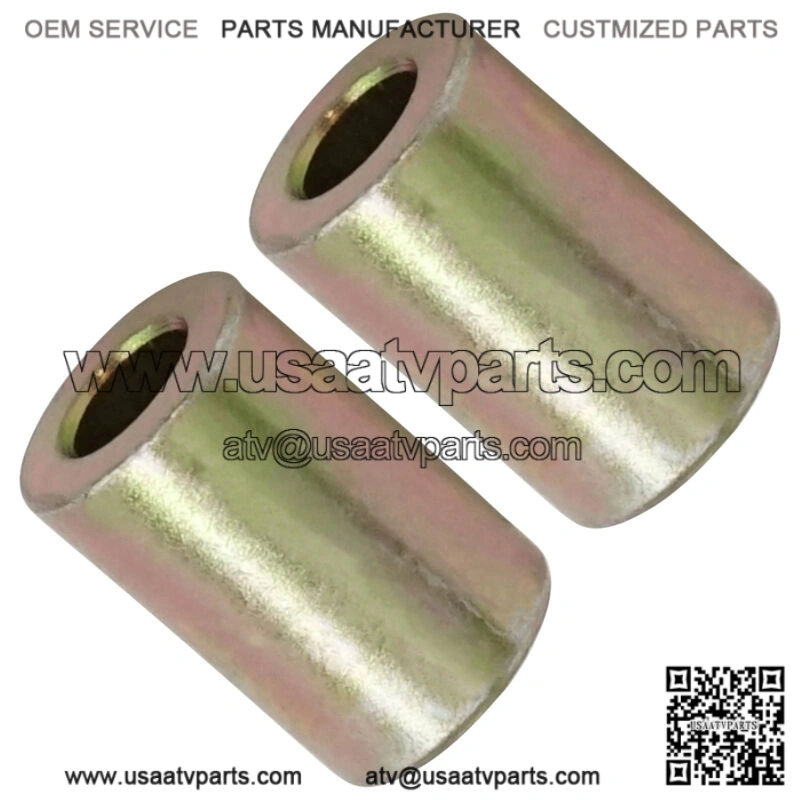

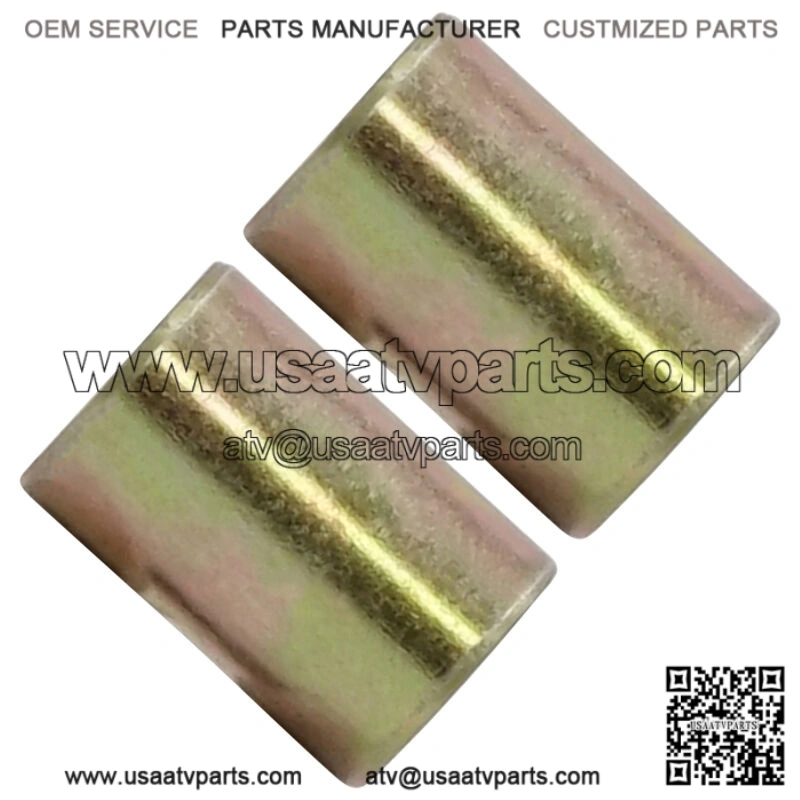

2 x Pivot Shaft: 5138276

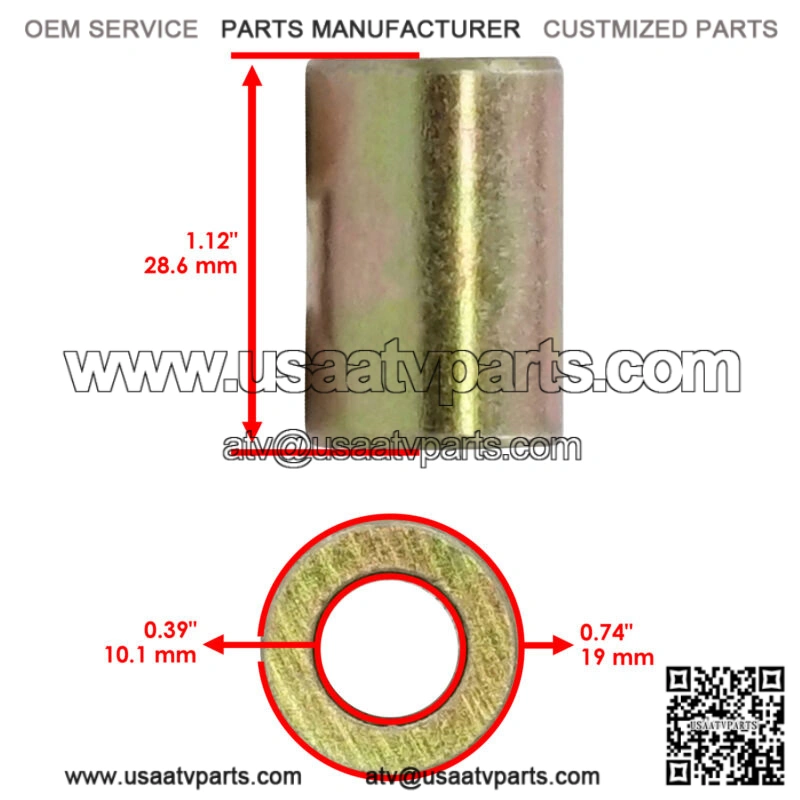

Length: 28.6 mm – 1 12 in
Inner Diameter: 10.1mm – 0 39 in
Outer Diameter: 19mm – 1 74 in
Note: Installs On Location (A) In Second Picture
Front Upper Control Arm Part Number:
Left: 1018824-589, 1021732-589, 1018824-293, 1021732-293
1018824-619, 1018824-458, 1021200-385, 1018818-458
1018818-385, 1019123-458, 1021200-458, 1021200-293
1021200-385, 1021940-133, 1021940-689, 1021940-446, 1021940-458
Right: 1018825-589, 1021733-589, 1018825-293, 1021733-293
1018825-385, 1021733-385, 1018825-619, 1021201-385
1018819-458, 1018819-385, 1019124-458, 1021201-458
1021201-293, 1021201-385, 1021941-133, 1021941-689
1021941-458, 1021941-446
Front Lower Control Arm Part Number:
Left: 1018826-589, 1018826-293, 1018826-385, 1018826-619
1019121-385, 1018816-458, 1018816-385, 1019121-458
1019121-293, 1018826-133, 1018826-689, 1018826-446, 1018826-458
Right: 1018827-589, 1018827-293, 1018827-385, 1018827-619
1019122-385, 1018817-458, 1018817-385, 1019122-458
1019122-293, 1018827-133, 1018827-689, 1018827-458, 1018827-446
Front Knuckle Part Number:
Left: 5139867, 5138413
Right: 5139868, 5138414
