Premium Quality Replacement Part
Front Differential Kit
Compatible with Polaris Models :
Ranger 900 Diesel 4×4 2011-2013
Ranger Crew 900 Diesel 2012-2013
RZR 800 2011-2013
RZR 4 800 2012-2013
RZR S 800 2011
RZR 570 2012-2013
RZR XP 900 2011-2013
RZR 4 XP 900 2012-2013

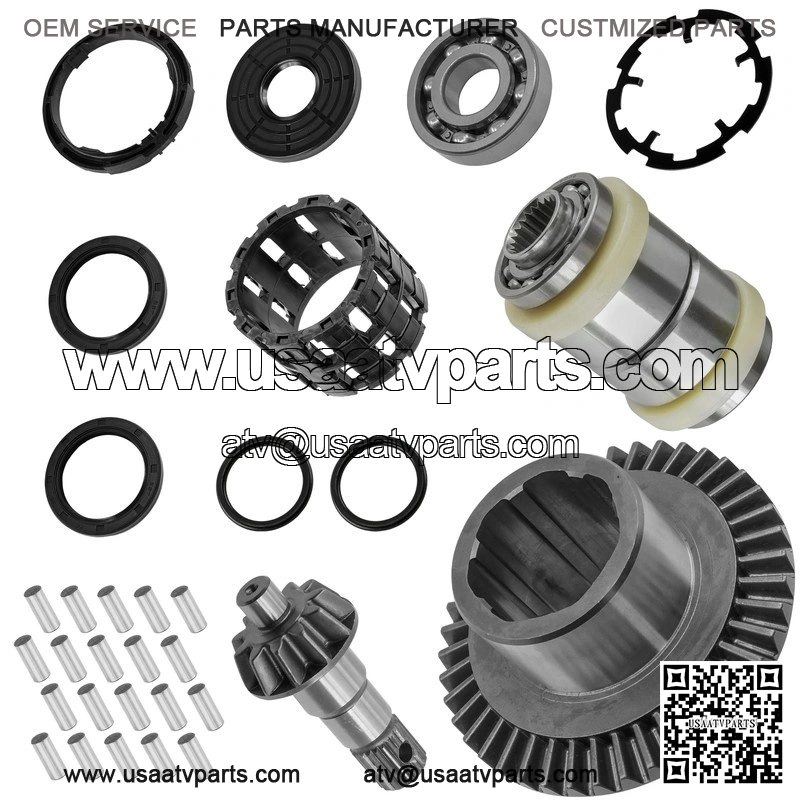

Order Includes :

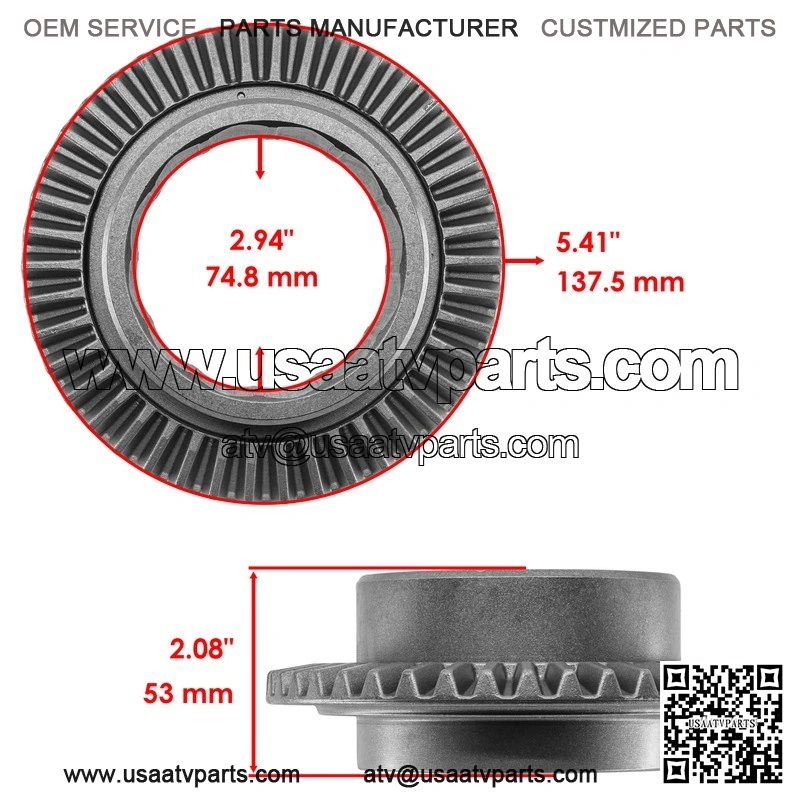

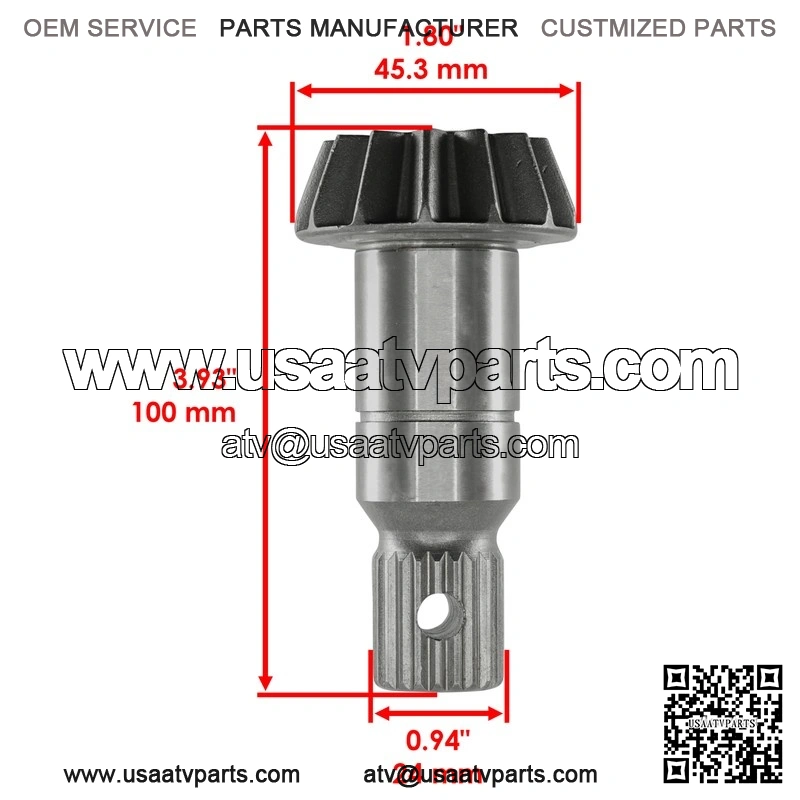

1x Front Differential Gear Ring & Pinion : 3235173, 3235441, 3239382, 3235636, 3236305
Bore : 74.8 mm – 2.94 in
Outer Diameter : 137.5 mm – 5.41 in

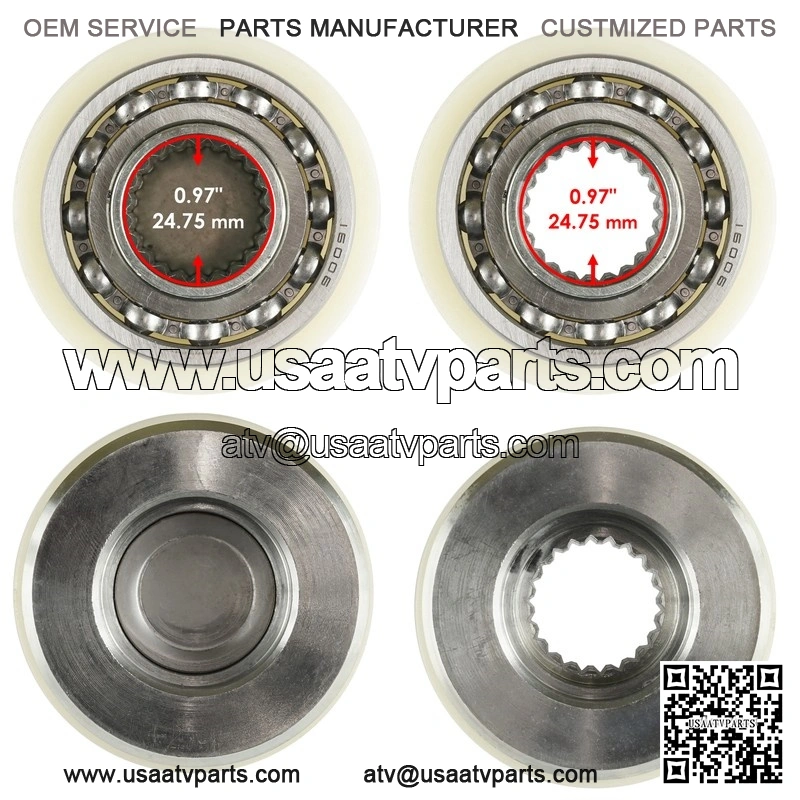

1x Output Hub Assembly : 3235169, 2203727, 2203728, 3235057, 3236683, 3236675, 3235911
1x Cage: 3234466, 3235263, 3235262, 3235261, 3234907, 3234394, 3234907
Outer Diameter: 72.8 mm – 2.86 in
20x Roller: 3234393, 3235624
Length: 19 mm – 0.74 in
Diameter: 7.9 mm – 0.31 in
1x Roller Cage : 3235917, 3235844, 3235625
Outer Diameter : 73mm – 2.8 in
Width : 52.5mm – 2.0 in
1x Bearing : 3235174
Inner Diameter : 28mm – 1.1 in
Outer Diameter : 72.4mm – 2.85 in
Width : 30.4mm – 1.19 in
1x Seal : 3236647
Inner Diameter : 32mm – 1.25 in
Outer Diameter : 72mm – 2.83 in
Width : 8mm – 0.31 in
2x Seal : 3233956
Inner Diameter : 29.5mm – 1.16 in
Outer Diameter : 40.1mm – 1.57 in
Width : 4mm – 0.15 in
2x O-Ring : 2203738, 2203739
1x Armature Plate : 3234407
Inner Diameter : 66mm – 2.6 in
Outer Diameter : 114mm – 4.5 in
1x Plastic : 3236663, 3234402, 3235162, 3234908
Inner Diameter : 87mm – 3.4 in
Width : 18.6mm – 0.73 in
Differential Part Numbers : 1332842, 1332923, 1333104, 1333105
