Front Brake Disc Pads Piston Bolt Kit for Polaris ATV 5243676 2202412 1930665
Fits the Following POLARIS Models
Diesel 2000-20001
Sportsman 335 2000
Sportsman 500 2000
Sportsman 500 RSE 2000
Sportspam 500 RSE HO 2001
Sportsman 500 DUSE 2001
Sportman 500 DUSE HO
Sportman 500 HO 2001 2003
Sportman 6×6 2001-2008
Sportsman 6×6 MV 2005 2007
Sportsman 400 2001-2004
Magnum 500 2001
Magnum 500 2×4 HDS 2002
500 Magnum 500 HDS 2001
Magnum 330 2×4 2003-2005
Worker 500 2001
Xpedition 425 2001 2002
Xplorer 400 2001 2002
Replaces POLARIS Part Number
Front Left/Right Brake Disc | 5243676
Mounting Bolt | 7512325 | 7515363
Brake Pads | 2202412
Brake Piston w/ Seals | 1930665 | 1930641 | 502506

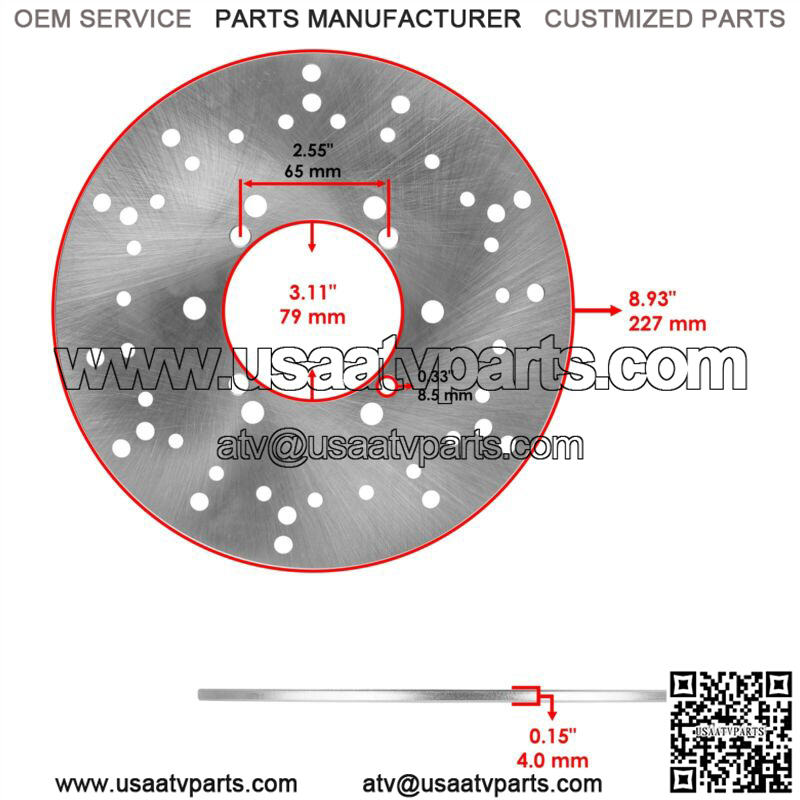

MEASUREMENTS & DETAILS
Brake Disc
ID 79 mm
OD 227 mm
Bolt Spacing 65mm
Mounting bolt Diameter 8.5mm

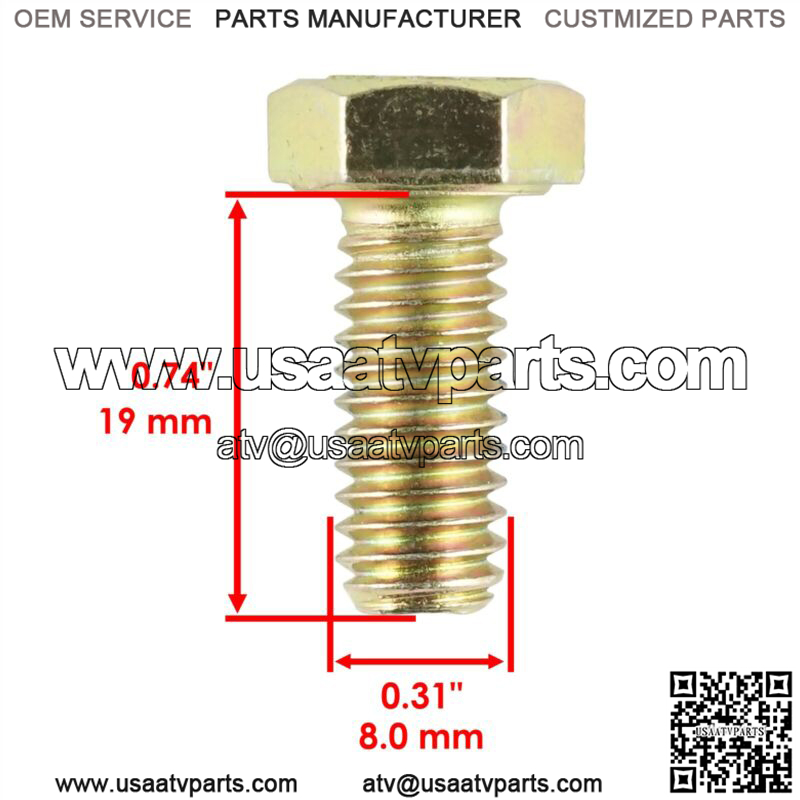

BOLTS
SAE GRADE 5

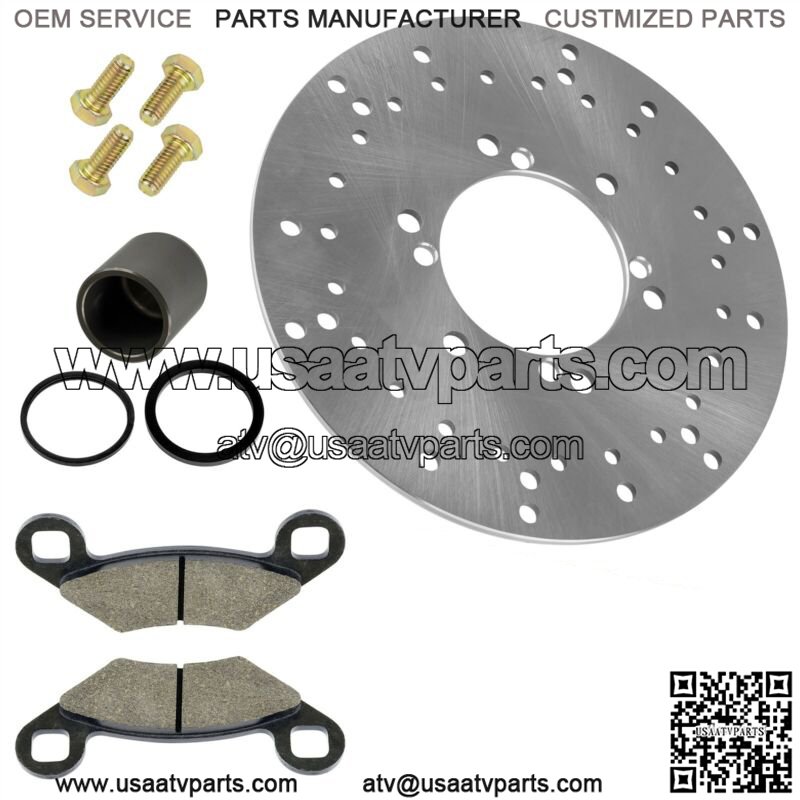

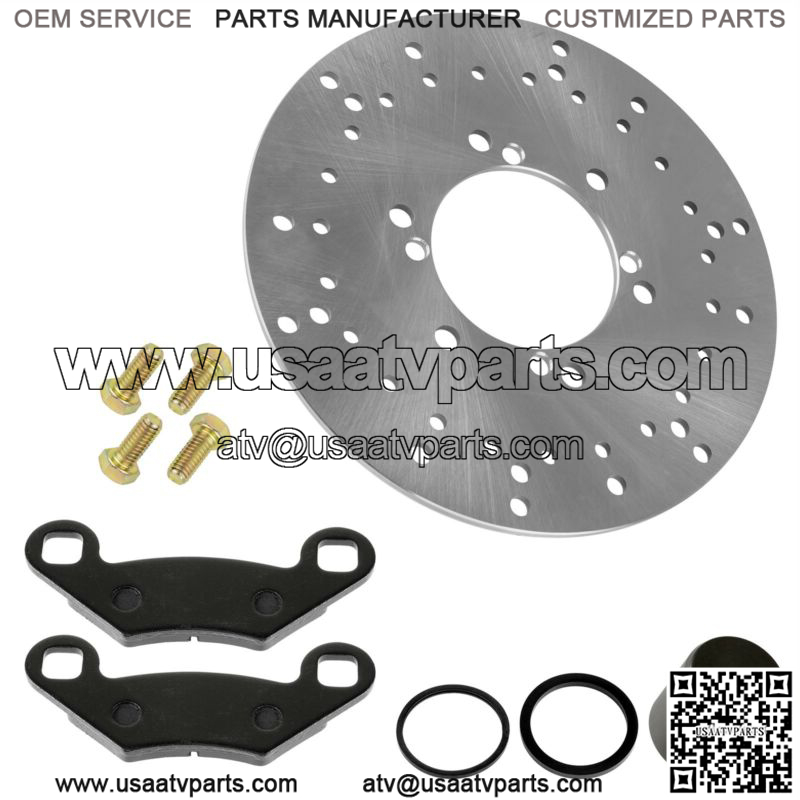

Order Includes:
1x Front Brake Disc
1x Brake Piston w/ Seals
1x Brake Pads
4x Disc Mounting Bolts
DETAILS:
brake rotors are manufactured using high precision CNC water jetting from tempered stainless steel for optimal performance
Mounting Bolts in order may differ in finish from picture and may include thread locker.
High quality brake pads are semi metallic containing a blend of 30-50% metal fibers.
**
