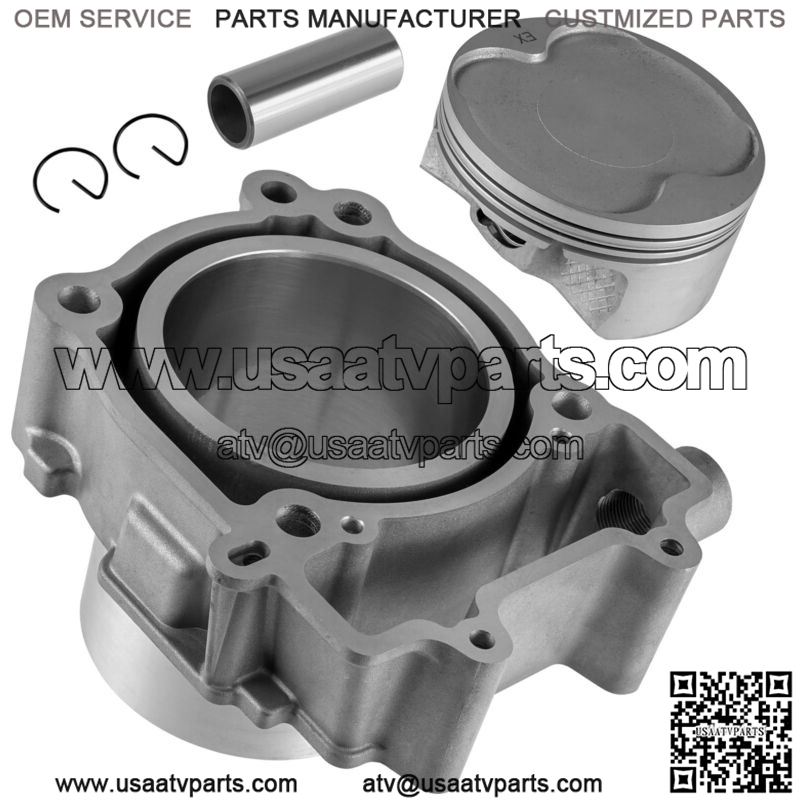

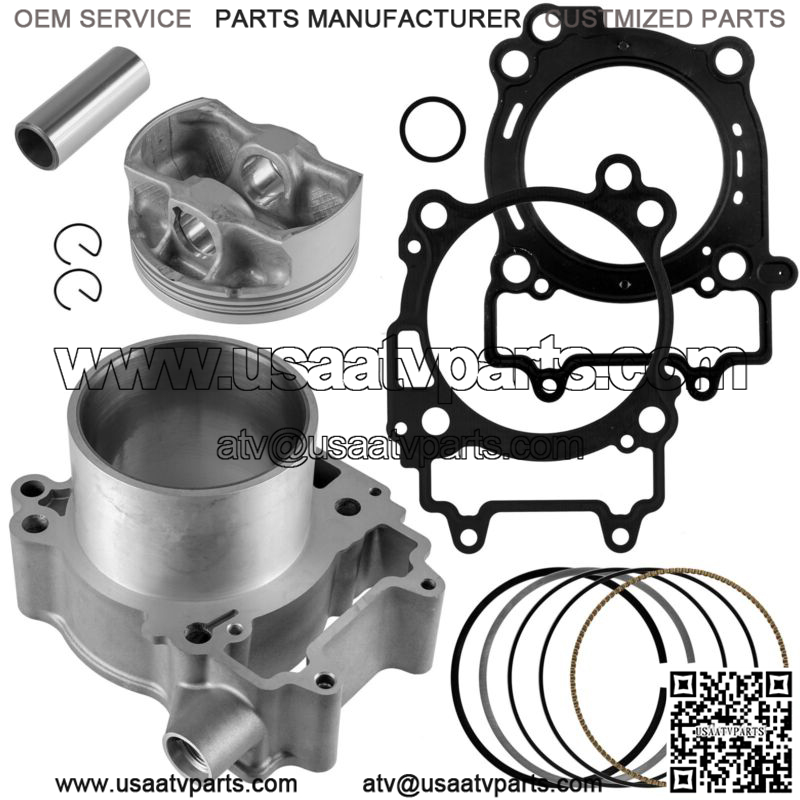

Top End Cylinder Rebuild Kit for Polaris Sportsman 570 2016-21 3022860 99×73.6mm
Incl. Cylinder, Piston, Gaskets, Rings, Pin, Clips
Fits Following Polaris Models:
Sportsman 570 All Options 2016-2021
Order Includes:

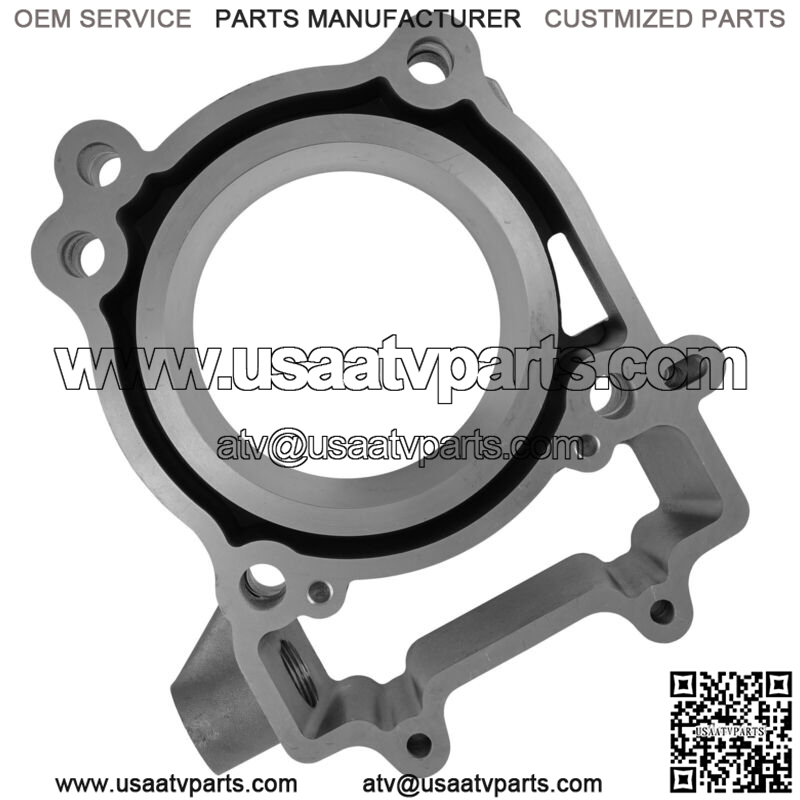

1x Cylinder Assembly : 302286

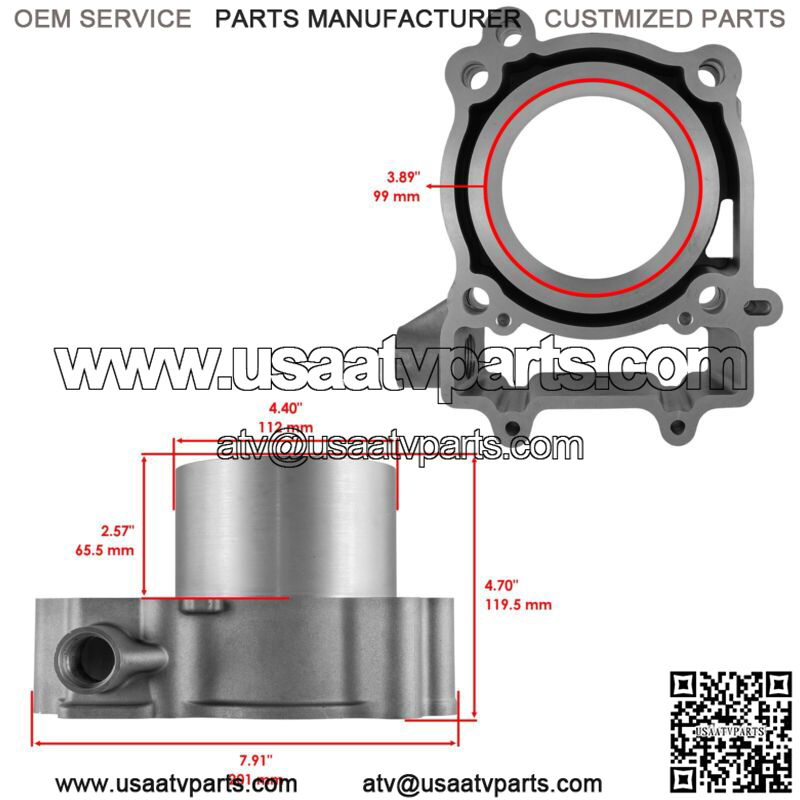

Height : 119.5mm
Length : 201mm
Width : 179mm
Cylinder Skirt Diameter : 65.5mm
Cylinder Skirt Outer Diameter : 112mm
Bore X Stroke : 99mm x 73.6mm
Displacement : 567 cc
1x Base Gasket : 5262008
1x Head Gasket : 2206222
1x Piston Kit : 2204960
Includes : Piston, Cir clip , Piston Pin , Piston Rings
