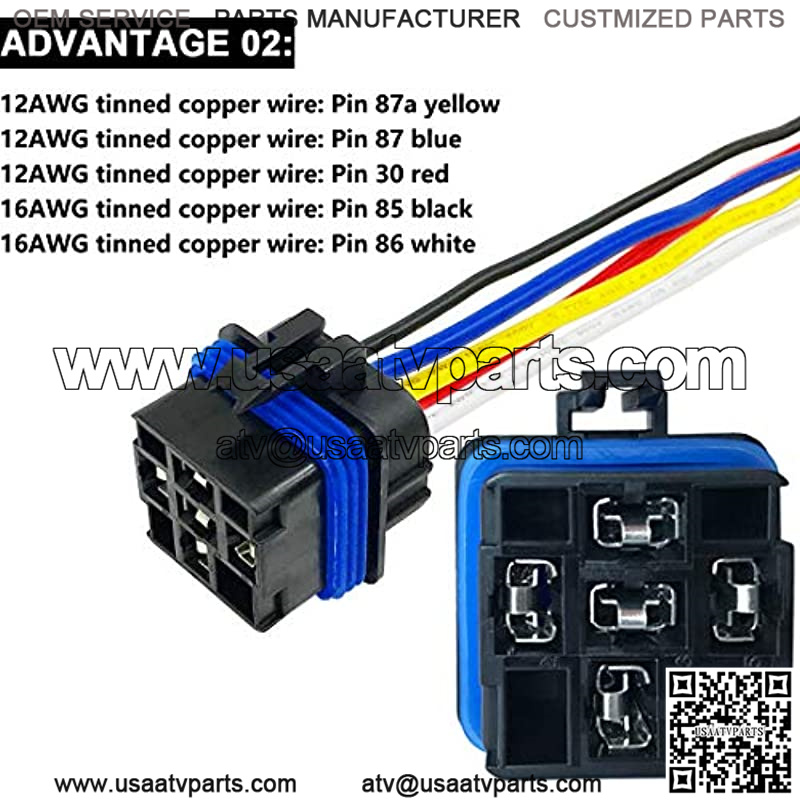

12 AWG tinned copper wires for pin 30, 87, 87a. 16 AWG tinned copper wires for pin 85 and 86. Length: 5.1in

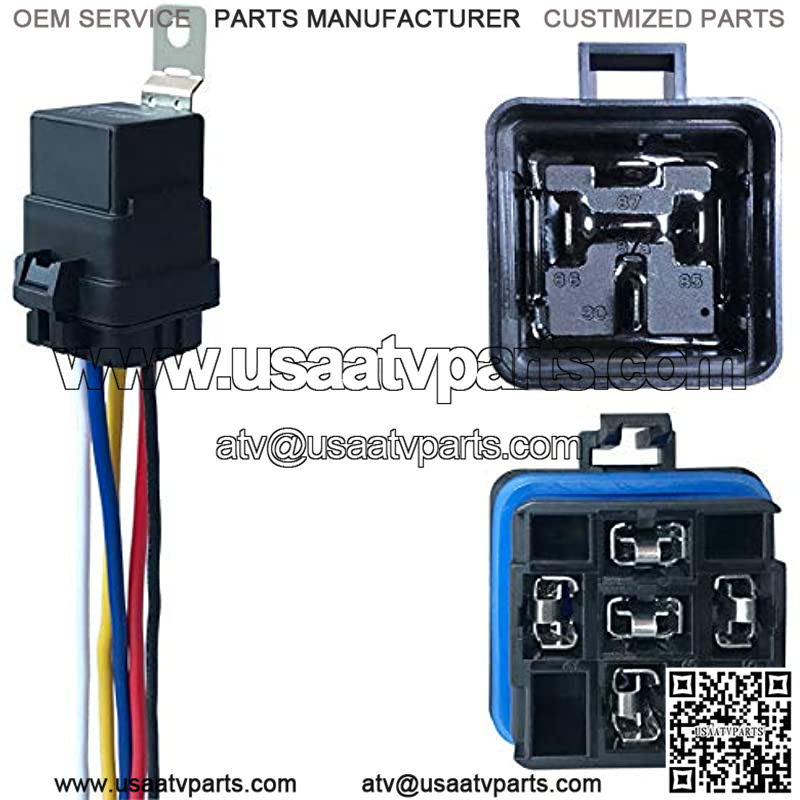

12V waterproof 5-prong relay (max 15.6V). 40 AMP / 30 AMP High switching capability

Excellent waterproof and dustproof ability, high quality in any weather conditions

12v relays can operate with anywhere between 9v and 15.6v, so if you are looking for a 14v 5-pin relay, this is what you want

SPDT relay: it has both normally open and normally closed terminals, terminal 87A is powered when the relay is inactive and switches the power to terminal 87 when the relay is activated
Our advantage 01

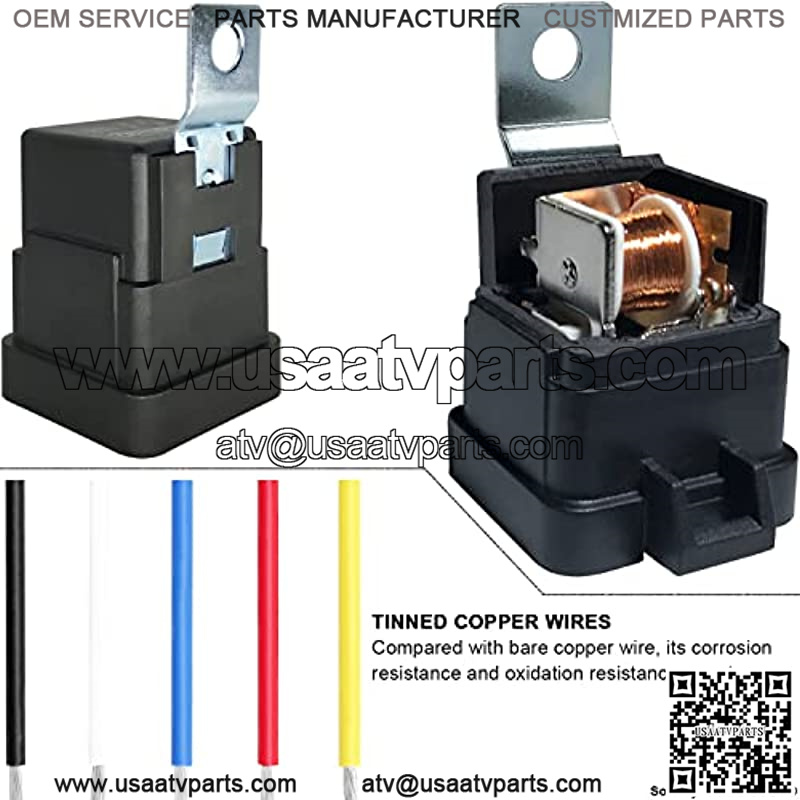

Tinned copper wires

Compared with bare copper wire, its corrosion resistance and oxidation resistance are stronger
Good electrical conductivity
Our advantage 02

85 Coil, Ground
86 Coil, Trigger
30 Common connection to NO & NC terminals
87 Normally Open (N/O)
87a Normally Closed (N/C) – not present on 4 pin relays

SPDT relay: it has both normally open and normally closed terminals, terminal 87A is powered when the relay is inactive and switches the power to terminal 87 when the relay is activated
The 5 terminals of the relay have been sealed, which will bring more stable performance. Few sellers are willing to make such improvements, and we are one of them
Waterproof

They have a good sealing feature and very robust
Excellent waterproof and dustproof performance
Reliable relay construction

Ensure superior quality and provide effective protection

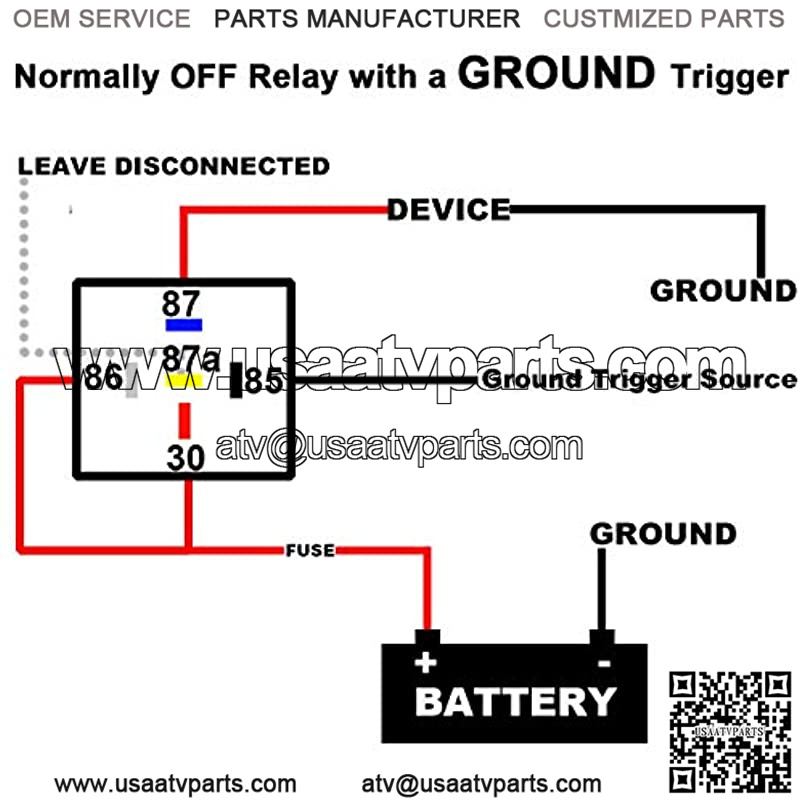

Plug and play: Easy to install just make sure you follow the wiring diagram. Works for both positive and negative activation.
