ATV Suspension

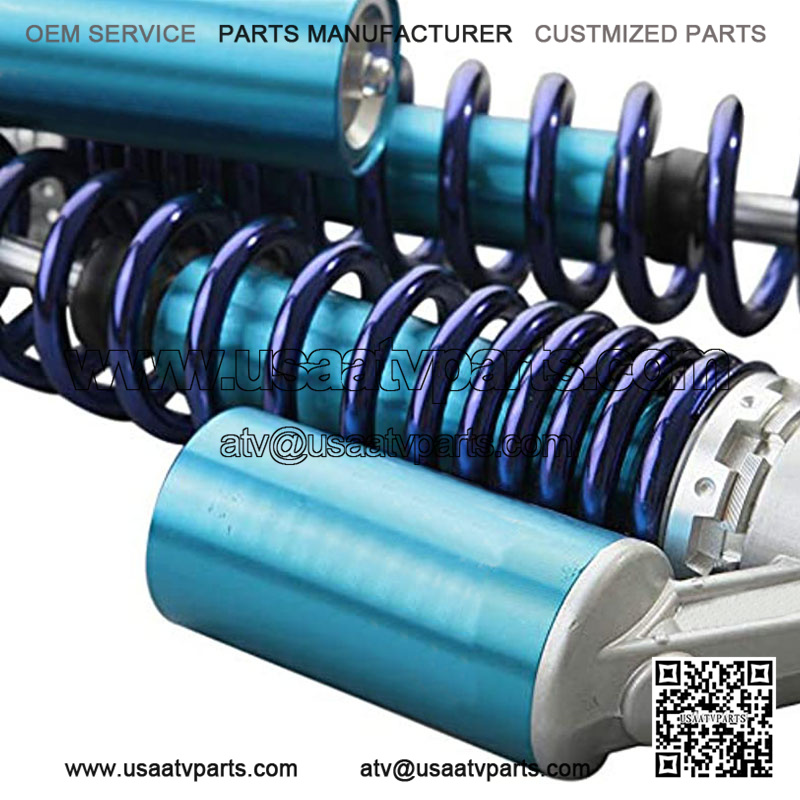

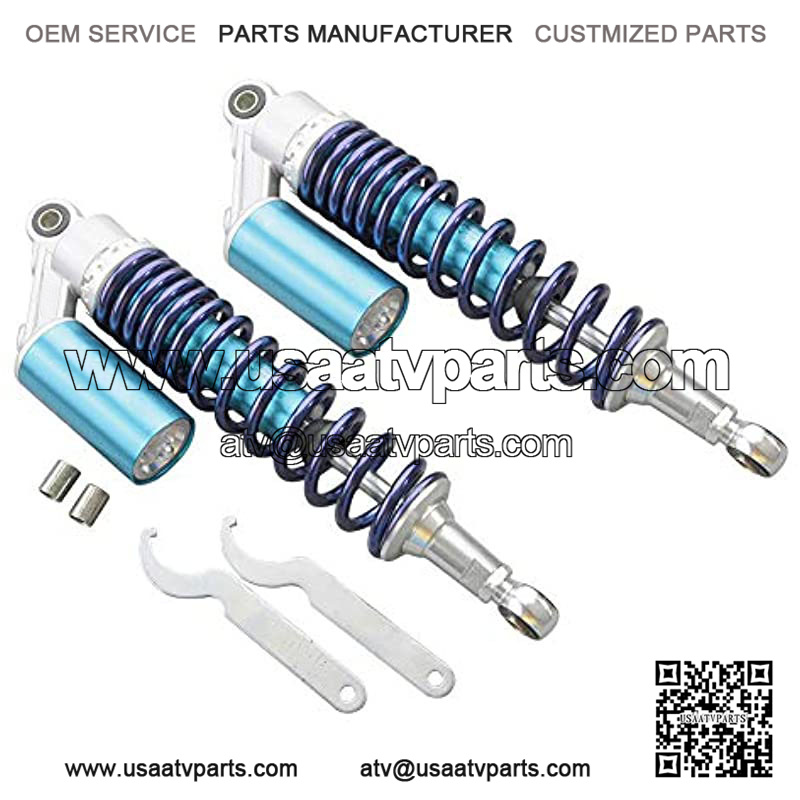

One pair universal fit ATV Go kart shocks. ( 1 x Left + 1 x right)
Shock strength is adjustable. Easy to install.
Fit on most 150cc~750cc Sport bikes, like Honda Suzuki Yamaha Kawasaki and ATV, UTV, Dirt Bikes, Go-kart and Moped Quad.
Fit bikes with shocks of 375mm eye to eye distance. Please make sure the size fits your bike before placing the order.
Packaged Included: 1 Pair Shock Absorbers
Color:375MM Blue
Fitment:
Universal Fit. Work perfectly on most 150cc~750cc street bikes, Scooters and Moped Quad (ATV) with shocks of 375mm eye to eye distance. Great choice for replacement, style upgrading and all kinds of bike modification. **Please check below dimension before bidding.
Specification:
Condition: 100% Brand New
Total Length: 400mm (15.75″)
Length of Eye to Eye Core: 375mm (14.75″)
Eye Diameter(with bushing): 12mm
Eye Diameter(with bushing removed): 16mm
Eye Thickness: 21mm
Eye Maximum Tensile Strength: 2,000 Kgf
Spring Thickness: 8mm
Spring Width: 60mm
Working Stroke: 68mm
Spring Stiffness: 110 kg
Maximum load: 300 kg ( 660 lbs)
Air Reservoir: Adjustable
Factory Air Pressure: 0.4 Mpa
Maximum Air Pressure: 0.5 Mpa
Package Included:
1 Pair Shock Absorbers
Notice:
Fitting manual is not included. installed by qualified mechanic is recommended.
Please pay attention to the length of the shocks, the Installation Type, and the Maximum load, before placing order.
