ATV Suspension

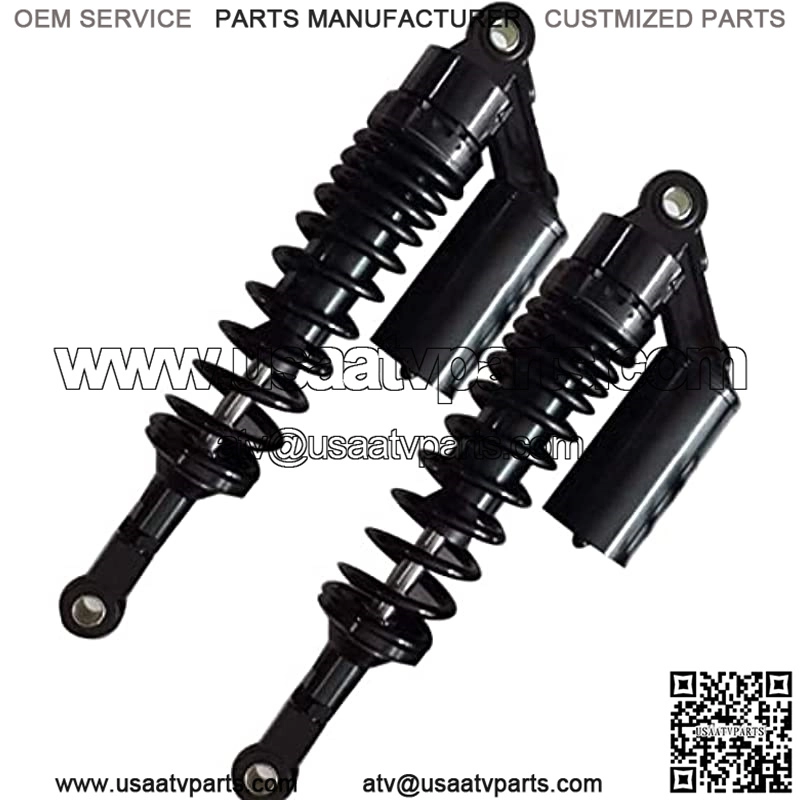

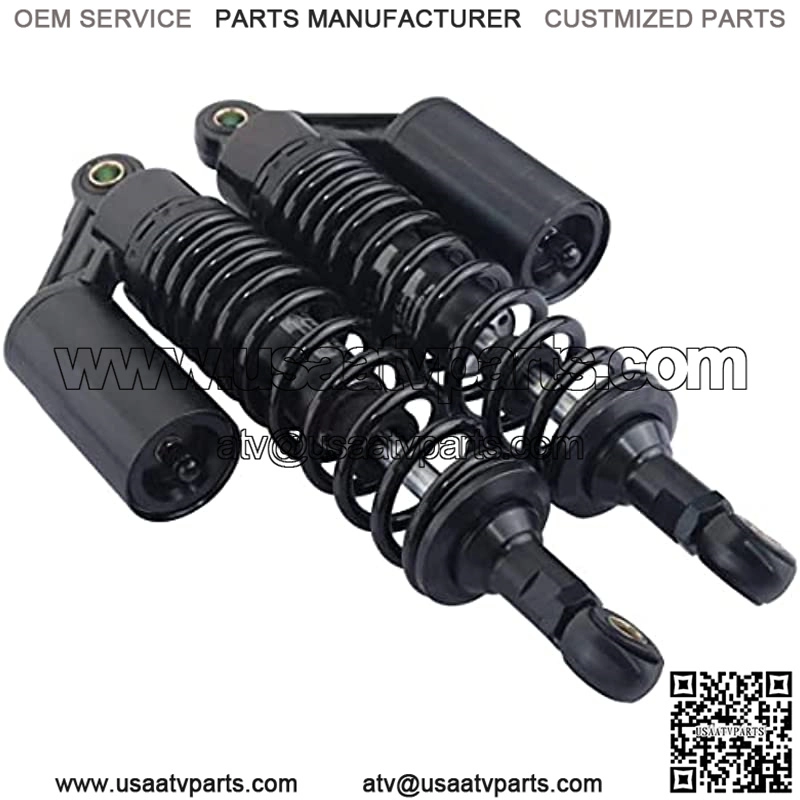

universal Motorcycle shock absorber fit for most vehicles
Installation type: Eye to Eye of 340mm distance.
Compatible with shock absorbers of 340mm eye to eye distance,The diameter of the round hole at the bottom is 12mm
Fit for most 150cc~1002cc Sport bikes and Dirt Bikes, Go-kart and Moped Quad.
Package included, 1 Pair Shock Absorber, 2 x Bushing ,2 x Wrench, Size:340mm
Condition: Brand new
Color: Black As picture show
Material: Aluminium Alloy and solid steel
Finish: Anodized coating
Mounting Type: Eye to Eye
Dimensions:
Total length: 370mm (14 4/8″)

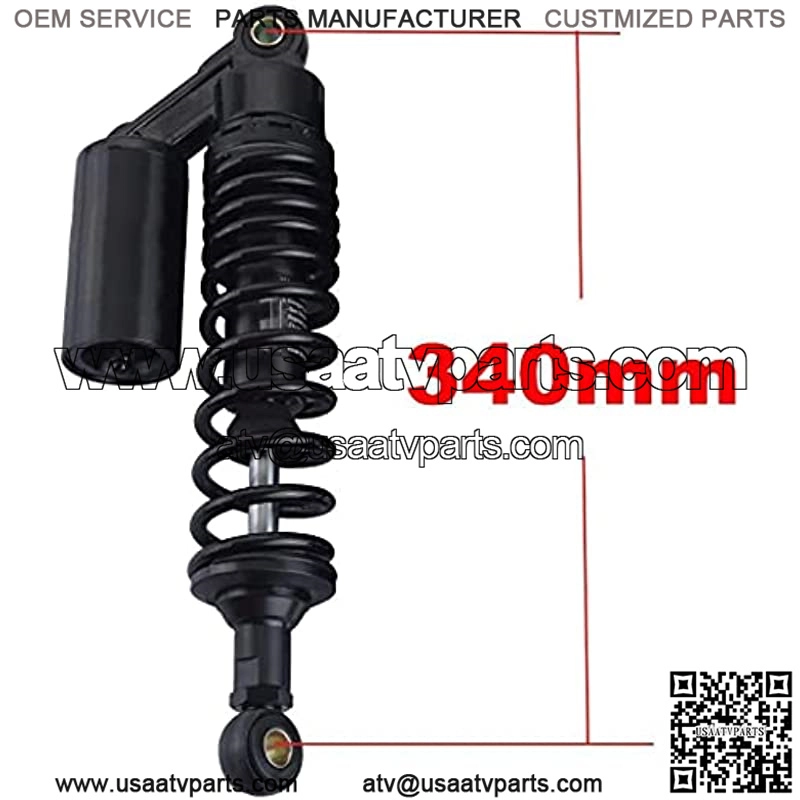

Length of eye to eye center: 340mm (13 3/8″)
Eye Diameter(with bushing): 10mm
Eye Diameter(with bushing removed): 12mm
Eye thickness: 21.00mm
Spring thickness: 8mm
Springs width: 60mm
Working stoke: 68mm
Maximum load: 300 kg (640 lbs)
Tensile strength of mounting hole: 2,000 Kgf
Spring stiffness: Adjustable (range: 10mm)
Nitrogen reservoir: Yes
Maximum Nitrogen/Air pressure: 5Mpa
Shock strength can be adjusted by springs or N
