Premium Quality Replacement Part
Primary Clutch Rebuild Kit w/ Weights for Polaris Sportsman X2 500 EFI 2007-2009
Great simple kit to rehab your Primary Clutch!

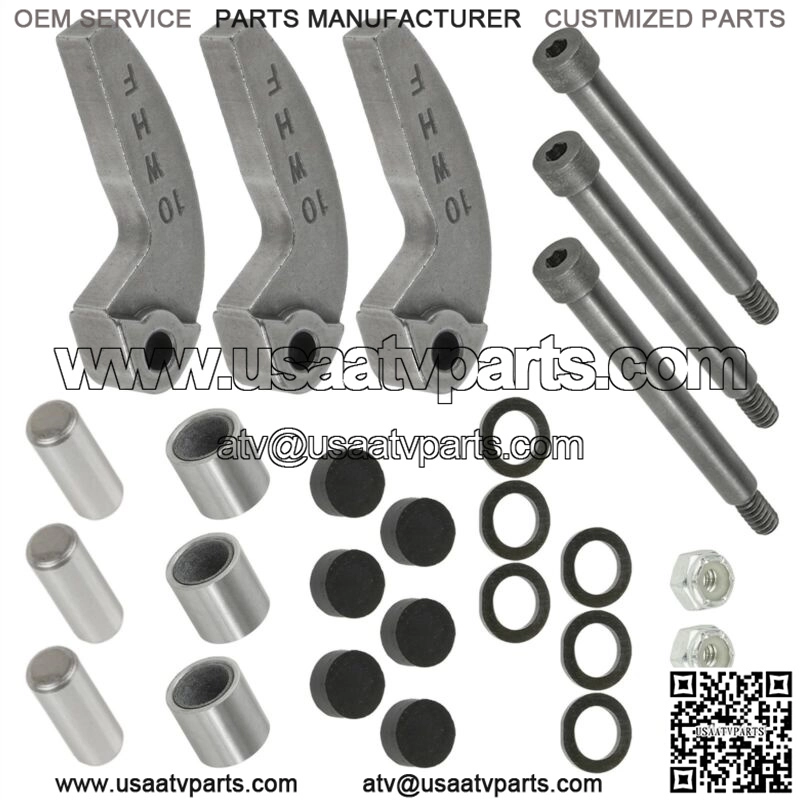

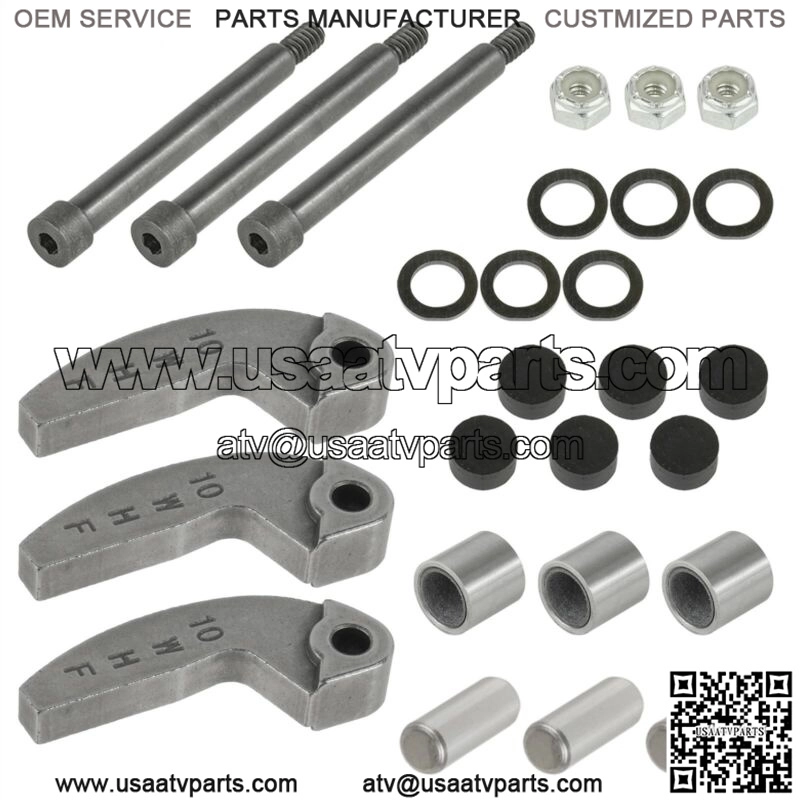

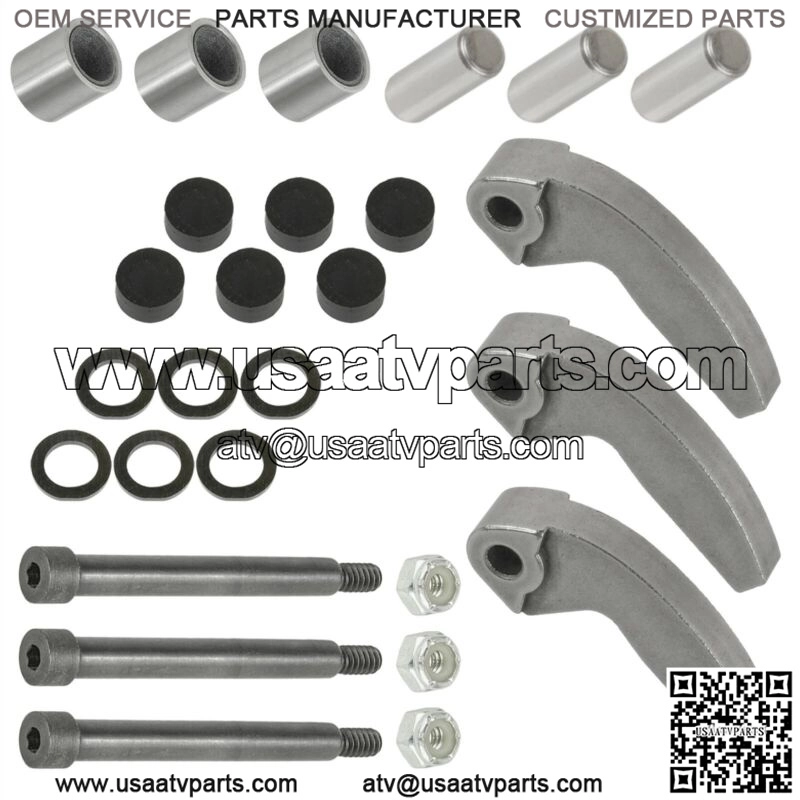

Kit Includes:
6x Clutch Buttons
3x Clutch Bushings
3x Roller Pins
6x Clutch Spider Washer
1x Set of Clutch Weights
3x Shoulder Bolts
3x Lock Nuts
Fits the Following Polaris Models
SPORTSMAN 500 EFI 2006-2009
SPORTSMAN 500 EFI TRACTOR 2009-2010
SPORTSMAN 500 HO EFI 2008
SPORTSMAN FOREST TRACTOR 500 2012-2014
SPORTSMAN FOREST TRACTOR 500 EFI 2011
SPORTSMAN TOURING 500 EFI 2008-2009
SPORTSMAN TOURING 500 HO 2010-2012
SPORTSMAN X2 500 EFI 2007-2009
Replaces POLARIS Part Numbers
Clutch Weight 10 BH | 5632401
Roller Pin | 5020422
Clutch Washer | 5438247
Clutch Button | 5439254 5431936
Roller Bushing | 13214570 5020433
Shoulder Bolt | 7512266
Lock Nut | 7541906

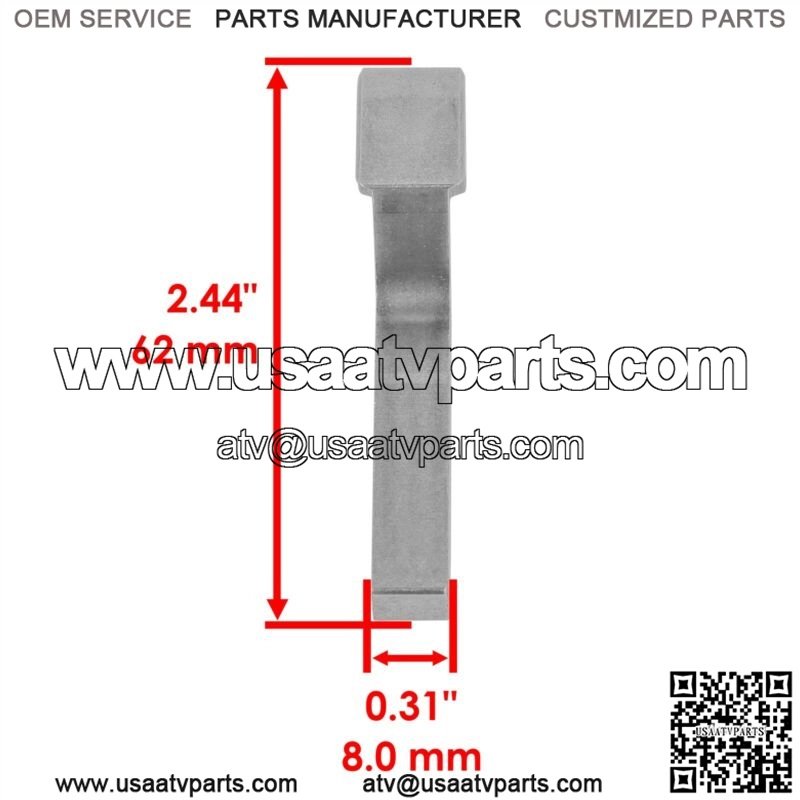

Clutch Weights
62mm Overall length

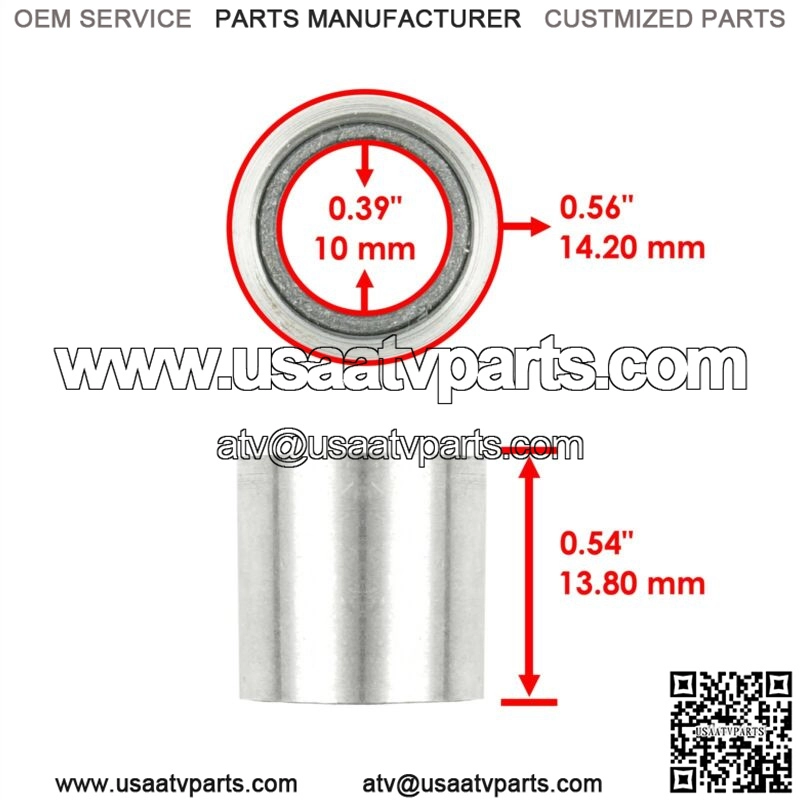

Clutch Bushings
14.25mm Outer Diameter
9.5mm Inner Diameter
13.85mm Width
Clutch Pins
9.5mm Diameter
25mm Length
Buttons
14mm Diameter
6.5mm Height
Spider Washer
14.4mm Outer Diameter
9.6mm Inner Diameter
1.5mm Thick
**
