Premium Quality Replacement Part
Primary Drive Clutch Rebuild Kit
Compatible With Polaris Models:
Ranger XP 900 2014
Ranger 900 Crew 2014-2015

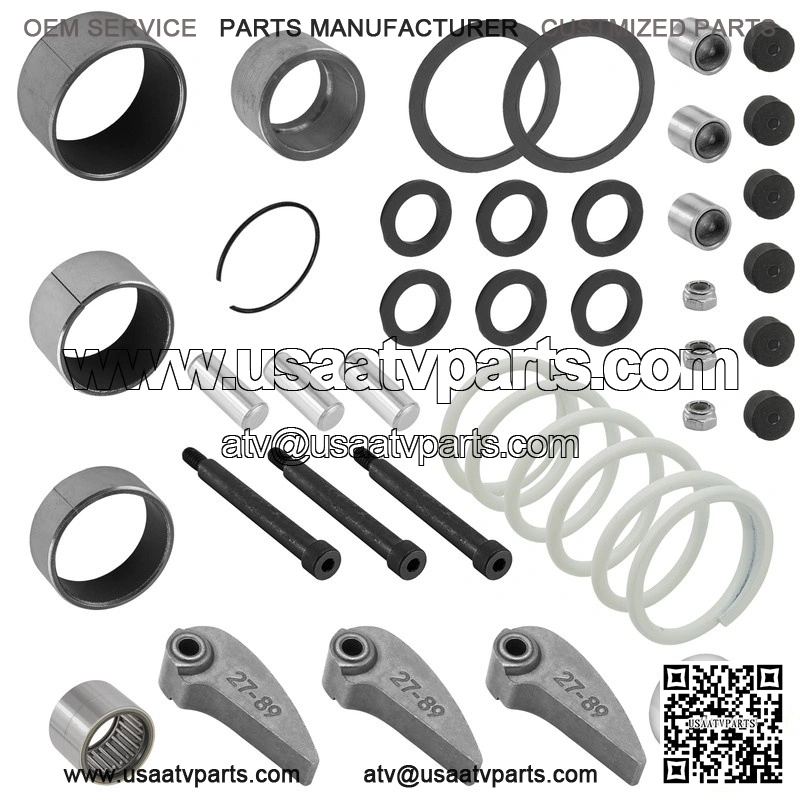

Order Includes:

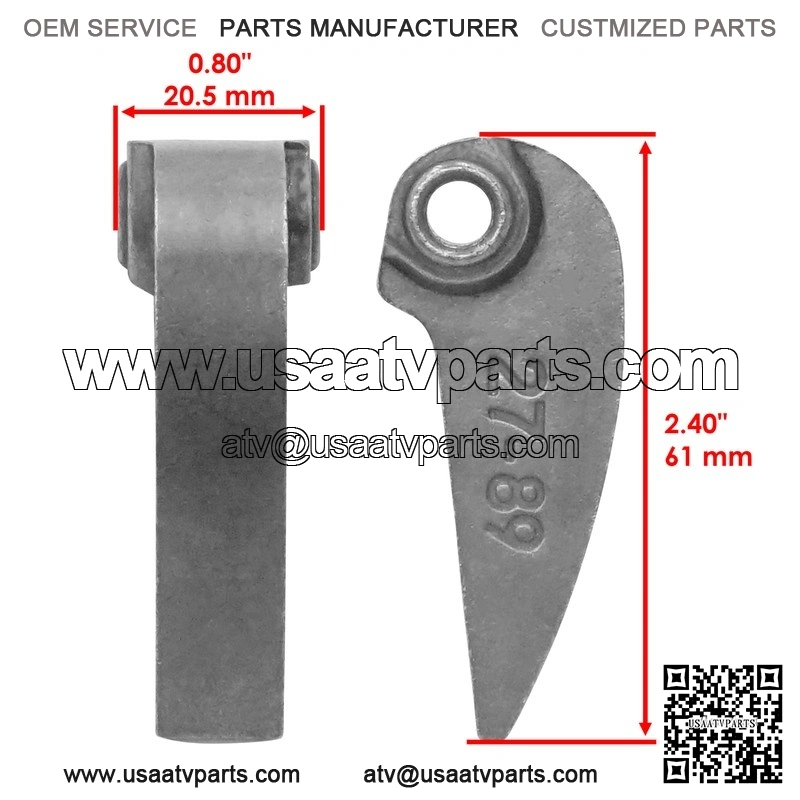

3 x Clutch Weight: 5138015 (29-75)
Length: 2.40 in – 61 mm
Width: 0.80 in – 20.5 mm

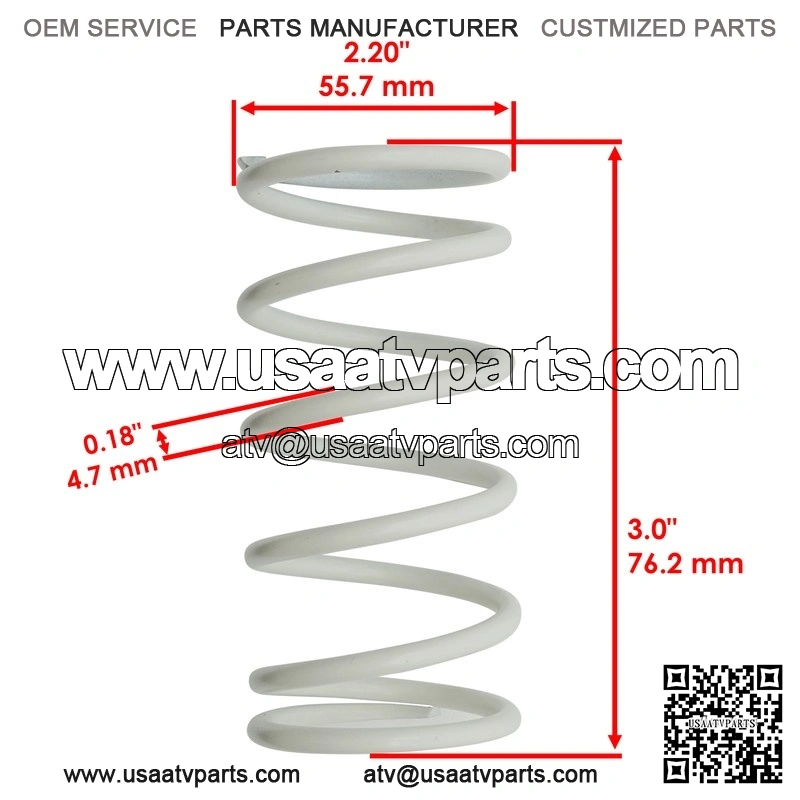

1 x Clutch Spring: 7044111 (90-155)
Length: 3.0 in – 76.2 mm
Width: 2.20 in – 55.7 mm
Item Thickness: 0.18 in – 4.7 mm
1 x Needle Bearing: 3514609 (Non EBC)
Outer Diameter: 1.44 in – 44.30 mm
Width: 1.24 in – 31.70 mm
1 x Needle Bearing: 1521172 1521667 (EBC)
Inner Diameter: 1.33 in – 45 mm
Outer Diameter: 1.75 in – 44.5 mm
Width: 1.24 in – 31.6 mm
3 x Roller: 1321622
Inner Diameter: 0.33 in – 9.5 mm
Outer Diameter: 0.56 in – 14.3 mm
Width: 0.54 in – 14 mm
3 x Roller Pin: 5020422
Length: 0.98 in – 25 mm
Width: 0.37 in – 9.5 mm
6 x Roller Washer: 5438247, 5430702, 5430945
Inner Diameter: 0.37 in – 9.7 mm
Outer Diameter: 0.57 in – 14.6 mm
Thickness: 0.059 in – 1.5 mm
6 x Button: 5439254, 5431936
Outer Diameter: 0.55 in – 14 mm
Width: 0.25 in – 6.5 mm
3 x Shoulder Bolt: 7512266
Length: 2.51 in – 63.8 mm
M5x1.0
3 x Nut: 7541906
Inner Diameter: 0.15 in – 4 mm
Width: 0.24 in – 6.1 mm
M5x1.0
2 x Washer: 7556335
Inner Diameter: 1.33 in – 34 mm
Outer Diameter: 1.69 in – 43 mm
Thickness: 0.043 in – 1.1 mm
1 x DU Bushing: 3514492
Inner Diameter: 1.77 in – 45 mm
Outer Diameter: 2.0 in – 51 mm
Width: 0.98 in – 25 mm
1 x Bushing Cover: 3576510
Inner Diameter: 1.14 in – 29 mm
Outer Diameter: 1.29 in – 33 mm
Width: 0.51 in – 13 mm
1 x Spacer: 5632328, 5633000
Inner Diameter: 1.37 in – 35 mm
Outer Diameter: 1.73 in – 44 mm
Width: 0.06 in – 27 mm
1 x Ring: 7710417
