ATV Bushings

Premium Quality Replacement Part
Rear Upper & Lower Left & Right Control Arm & Knuckle Bushing Kit
Compatible with Polaris Models:
Sportsman 570 2018-2023
Sportsman 570 Touring EPS 2018-2019
Sportsman 570 Premium 2021-2022
Sportsman Touring 570 EPS 2020-2023
Sportsman Touring 570 Premium 2020-2022
Sportsman X2 570 EPS 2019-2023

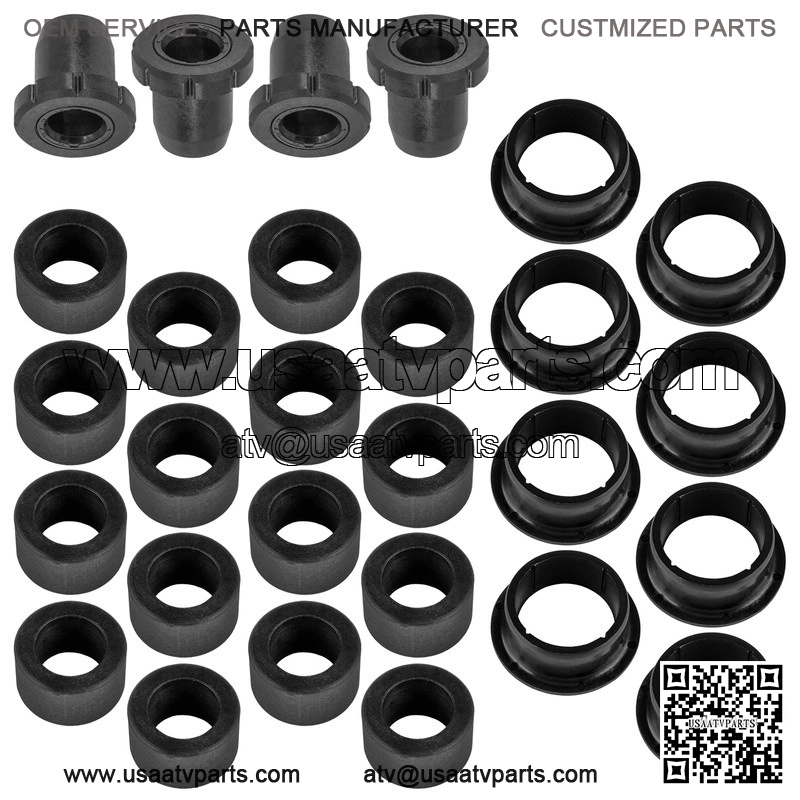

Order Includes:

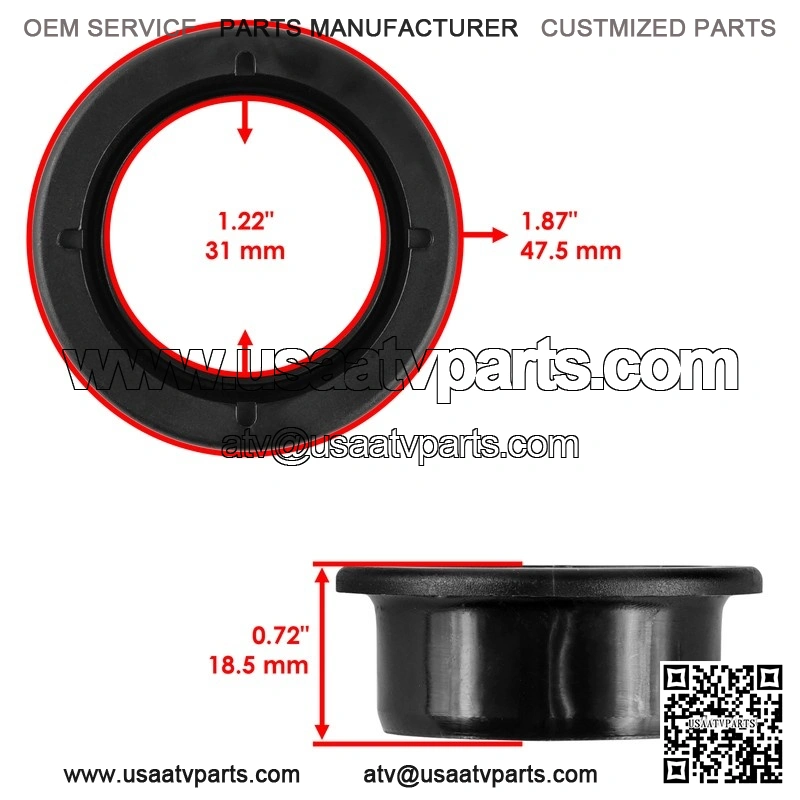

8 x Bushing: 5438902, 5432092, 5433065, 5434550
Width: 18 5mm – 0 72 in
Inner Diameter: 31mm – 1 22 in
Outer Diameter: 47 5mm – 1 87 in
Material: Plastic

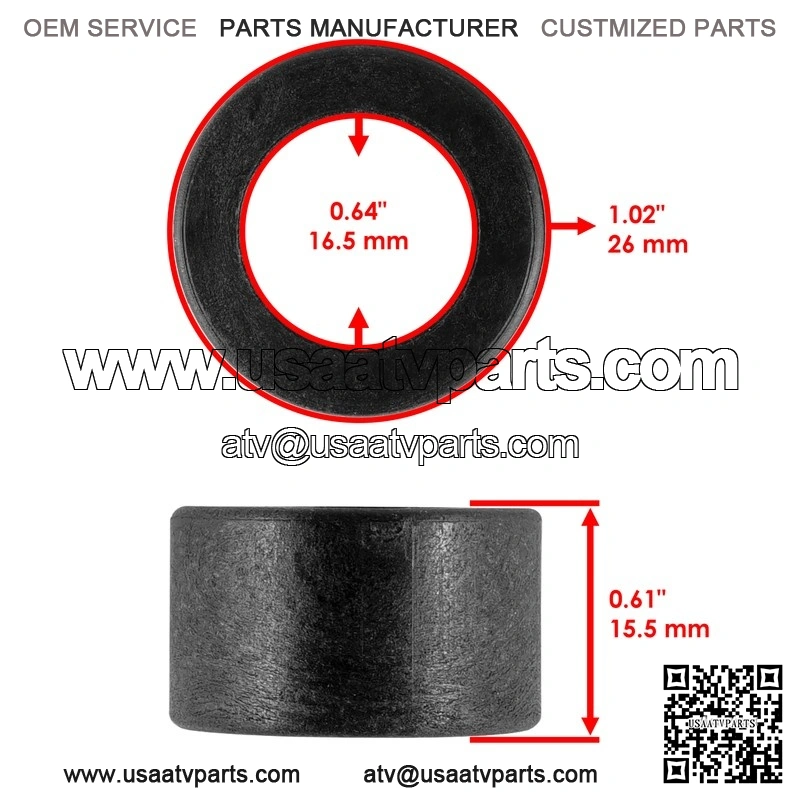

16 x Bushing: 5452233
Width: 15 5mm – 0 61 in
Inner Diameter: 16 5mm – 0 64 in
Outer Diameter: 26mm – 1 02 in
Material: Plastic

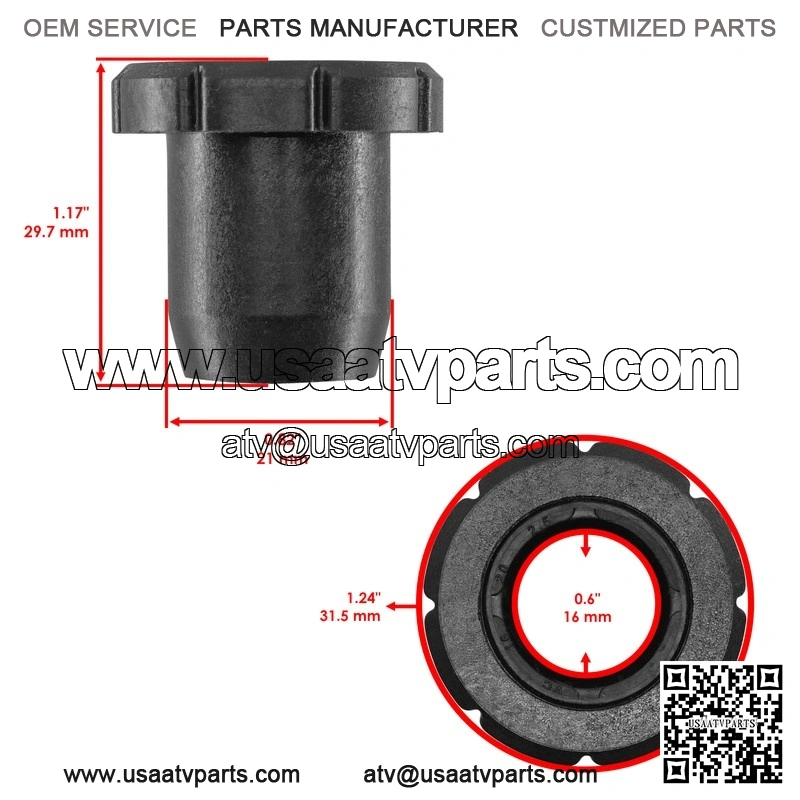

4 x Bushing: 1543326
Width: 29 7mm – 1 17 in
Inner Diameter: 16mm – 0 6 in
Head Diameter: 31 5mm – 1 24 in
Tube Diameter: 21mm – 0 82 in
Material: Plastic
Note: Installs On Location (A) (B) (C) (D) (E) (F) In Second Picture
Rear Upper Control Arm Part Number:
Left: 1023359-458
Right: 1023360-458
Rear Lower Control Arm Part Number:
Left: 1023570-458
Right: 1023571-458
Knuckle Part Number:
Left & Right: 5135563
