Rear Upper Lower Control Arm Bushing Kit For Polaris Sportsman 850 SP 2015-2020

SKU: ChT.03825 Category: Tags , , , ,

Spread the love
Share on facebook
Share on twitter
Share on linkedin
Share on pinterest
Share on whatsapp
Share on telegram
Share on tumblr

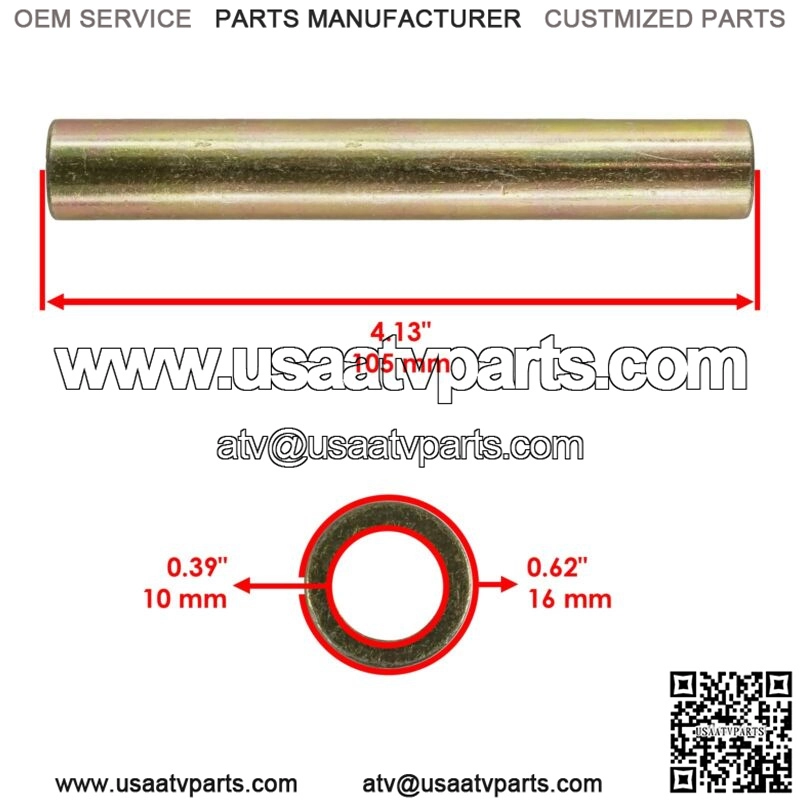

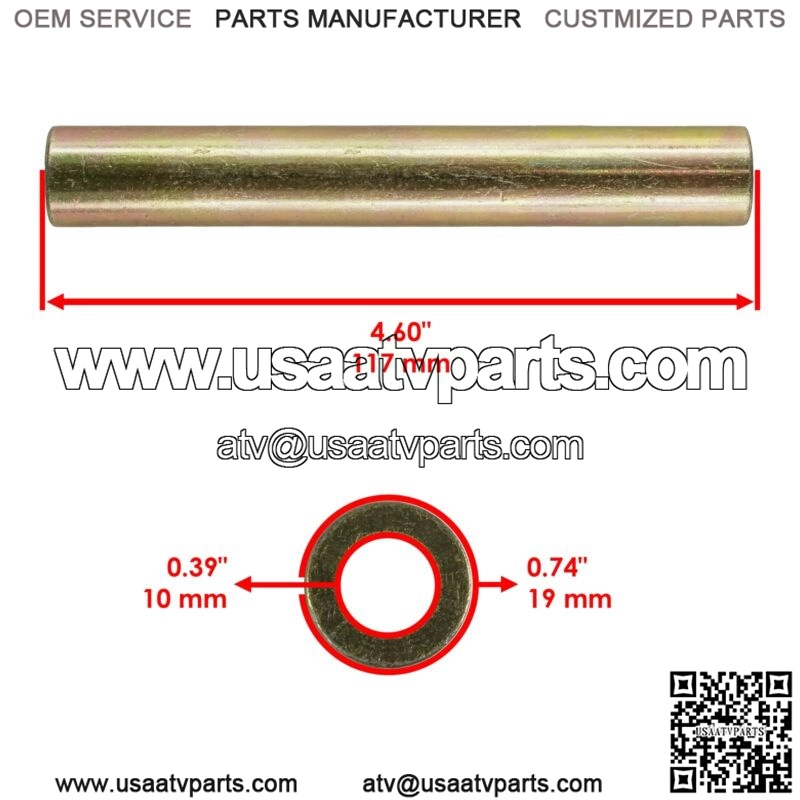

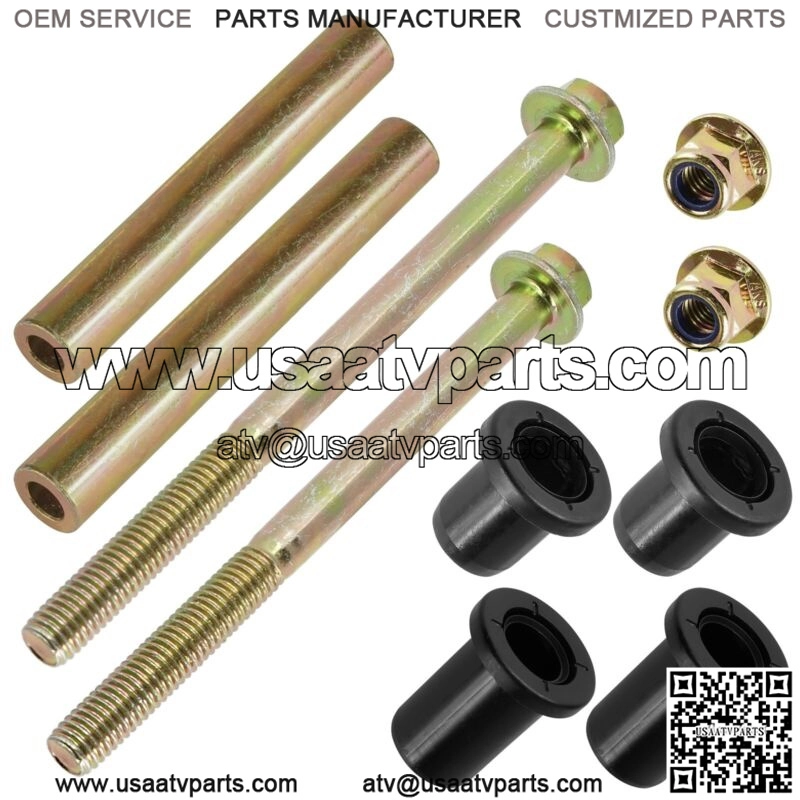

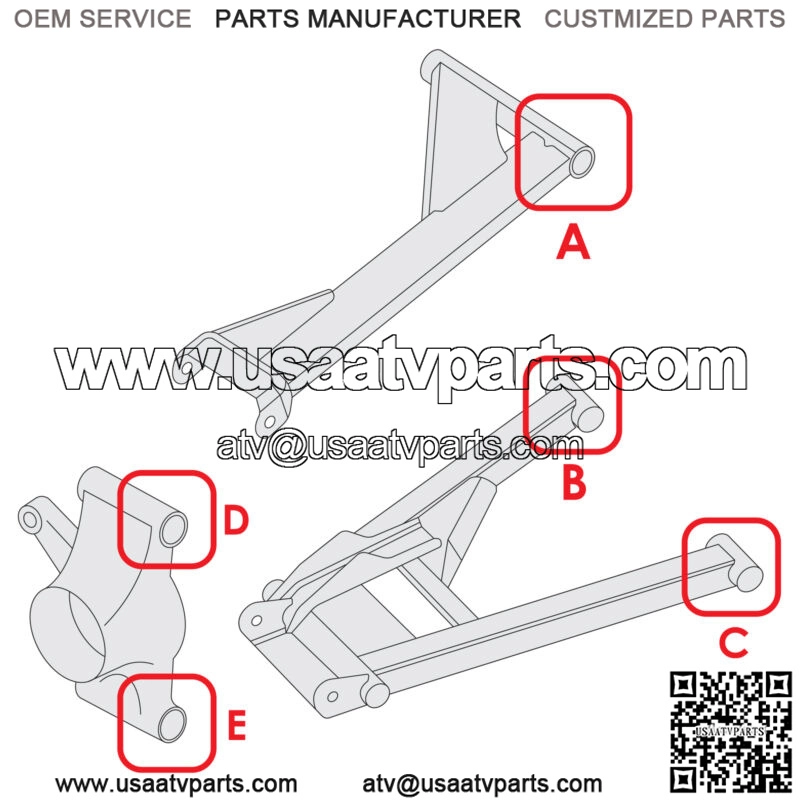

Premium Quality Replacement PartRear Upper Lower Outer Left or Right Control Arm Bushing Kit For Polaris Models:Sportsman 850 SP 2015-2020Order Includes:1x Short Pivot Shaft : 5137590 5135501Dimensions : 10X19X117mm 1x Long Pivot Shaft : 5136473Dimensions : 10X16X105mm2x Long Bushing : 5437651Dimensions : 19X37.7X47mm2x Short Bushing : 5439874 5436832 5436505Dimensions : 16X31X30mm1x Long Bolt : 7518467Length : 150mmThread size : M10X1.51x Short Bolt : 7518675Length : 140mmThread size : M10X1.52x Nut : 7547313Inner Diameter : 8.5mmOuter Diameter : 21.5mmHeight : 13mmThread Size : M10X1.5Note:Installs On Location (E) & (D) In Second PictureControl Arm Part Number:Rear Upper Left 1025619-067 1017216-067Rear Upper Right 1025620-067 1017217-067Rear Lower Left 1019410-067 1022011-067Rear Lower Right 1019411-067 1022012-067**
