Rear Upper Lower Control Arm Bushing Kit For Polaris Sportsman XP 550 2013-2014

SKU: ChT.03782 Category: Tags , , , ,

Spread the love
Share on facebook
Share on twitter
Share on linkedin
Share on pinterest
Share on whatsapp
Share on telegram
Share on tumblr

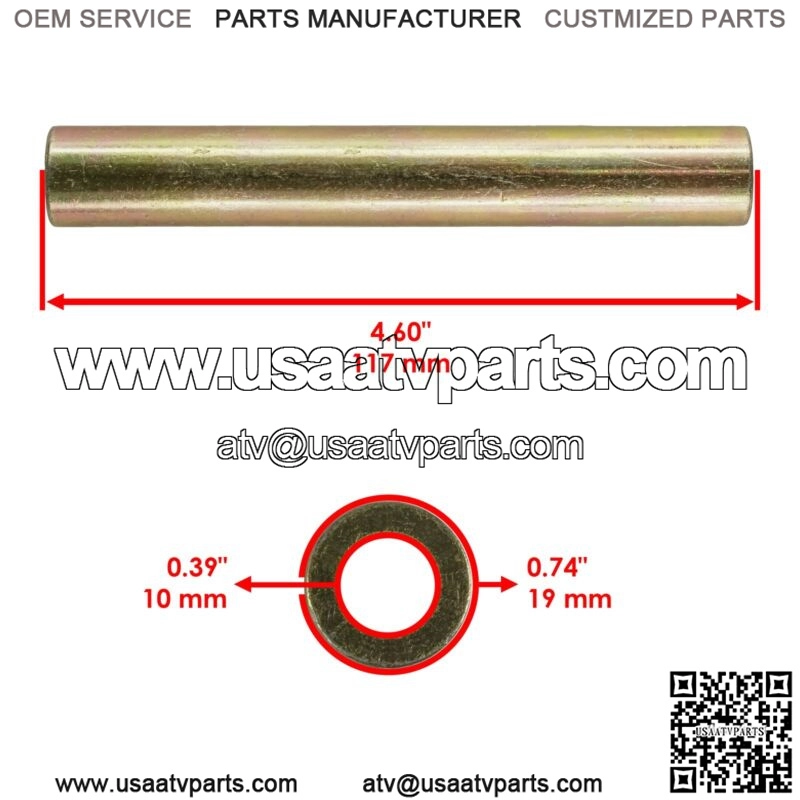

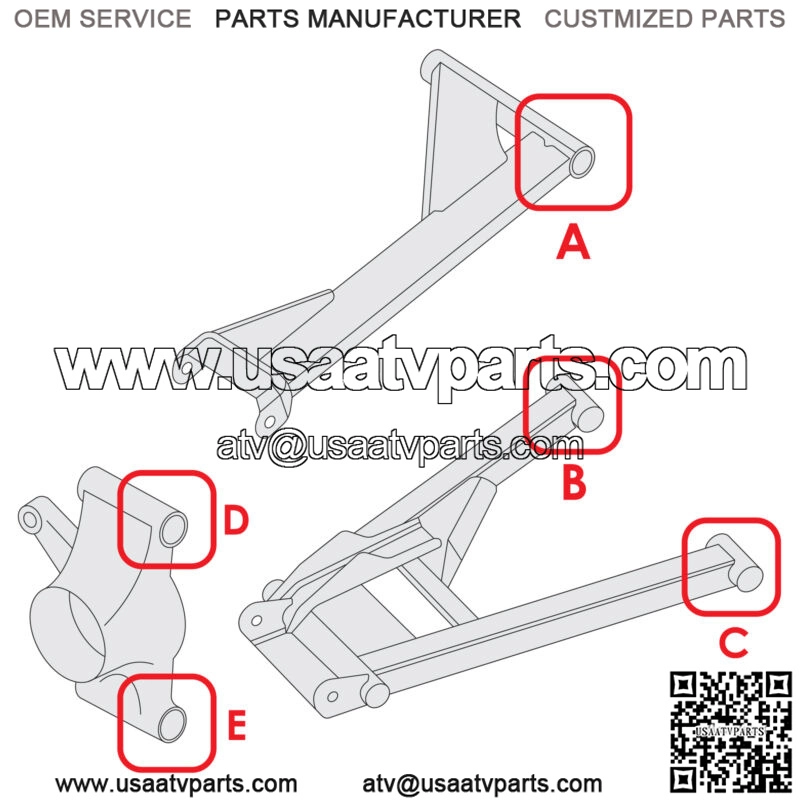

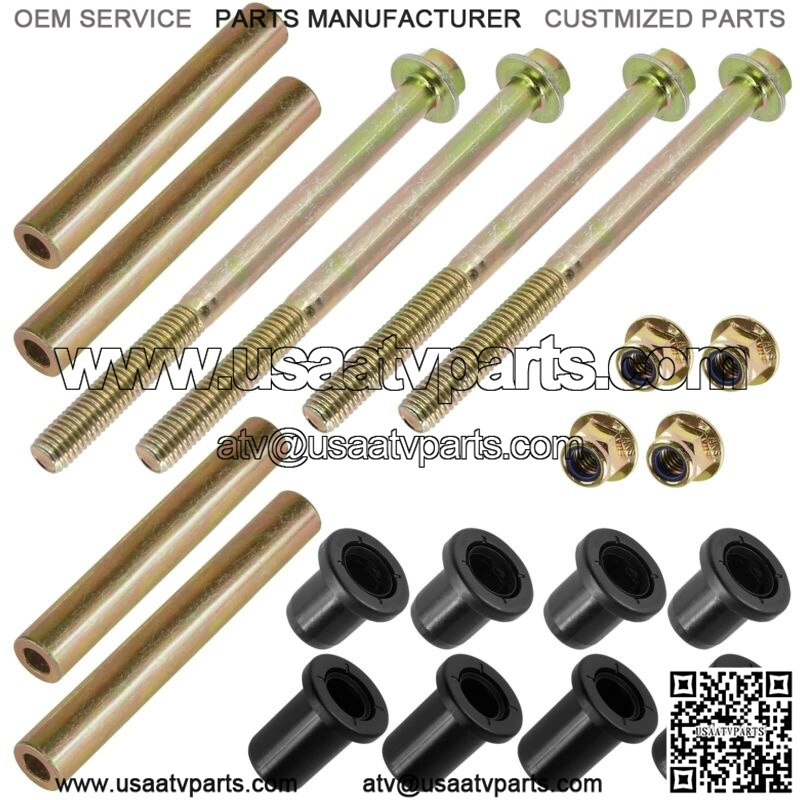

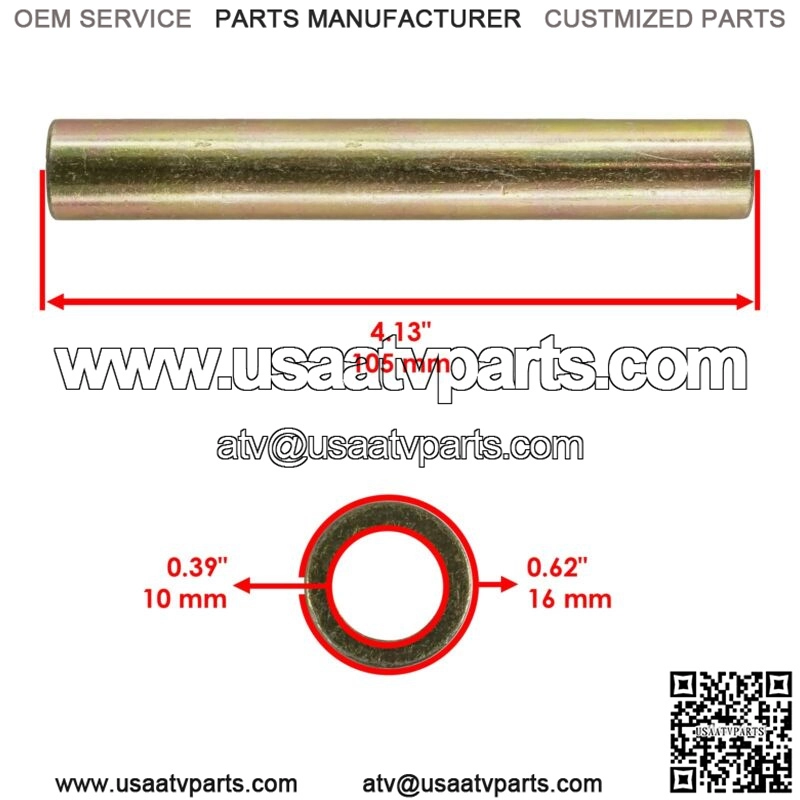

Premium Quality Replacement PartRear Upper Lower Outer Left & Right Control Arm Bushing KitFor Polaris Models:Sportsman XP 550 HD 2013-2014Order Includes:2x Short Pivot Shaft : 5137590 5135501Dimensions : 10X19X117mm 2x Long Pivot Shaft : 5136473Dimensions : 10X16X105mm4x Long Bushing : 5437651Dimensions : 19X37.7X47mm4x Short Bushing : 5439874 5436832 5436505Dimensions : 16X31X30mm2x Long Bolt : 7518467Length : 150mmThread size : M10X1.52x Short Bolt : 7518675Length : 140mmThread size : M10X1.54x Nut : 7547313Inner Diameter : 8.5mmOuter Diameter : 21.5mmHeight : 13mmThread Size : M10X1.5Note: Installs On Location (E) & (D) In Second PictureControl Arm Part Number:Rear Upper Left 1025619-067 1017216-067Rear Upper Right 1025620-067 1017217-067 Rear Lower Left 1019410-067 1017154-067 1018215-067 1017864-067Rear Lower Right 1019411-067 1017155-067 1017865-067 1018216-067**
