ATV Drive Clutch

PREMIUM REPLACEMENT PART
We strongly suggest comparing the posted picture to your faulty unit!
For Yamaha Models:
Rhino 660 YXR66F 2004-2007Rhino 660 YXR66F Exploring Edition 2006-2007Rhino 660 YXR66F Special Edition 2006-2007Rhino 660 YXR66F Ducks Unlimited 2007Rhino 660 YXR66F Sport Edition 2007

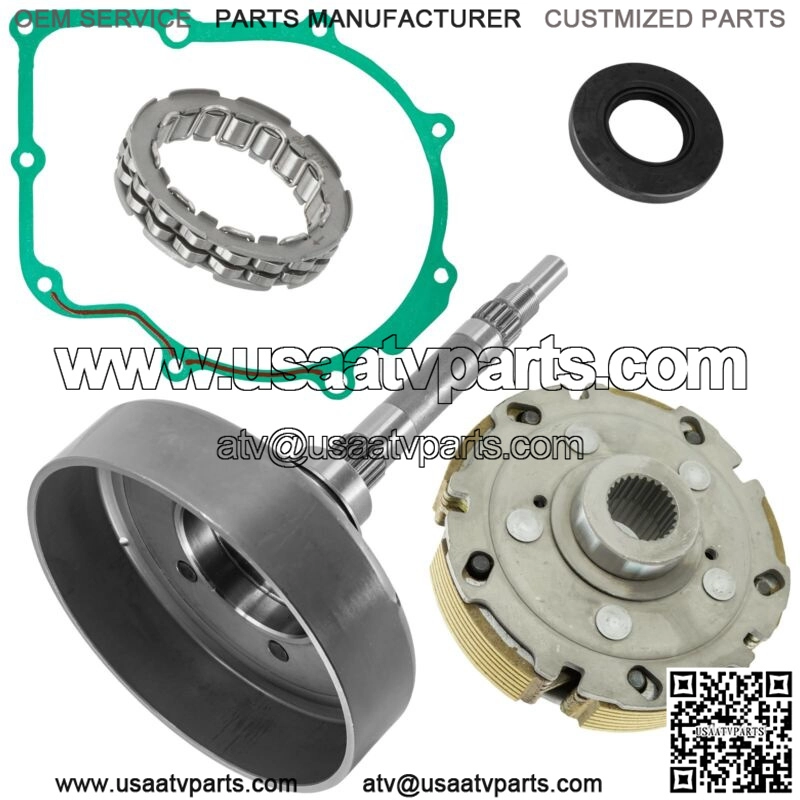

Order Includes:
1 x Oil Seal |
93102-35004-00 2MB-E511B-00-00
1 x Centrifugal Drum Housing |
5KM-16611-10-00 5KM-16611-00-00
1 x Clutch Hub One Way Bearing |
4SH-16664-00-00
1 x Centrifugal Wet Clutch |
5KM-16620-00-00
1 x Wet Clutch Gasket |
5KM-15463-00-00
Dimensions & Measurements :
Oil Seal
Inner Diameter :
32.7mm | 1.28″
Outer Diameter :
66mm | 2.59″
Width :
8mm | 0.31″

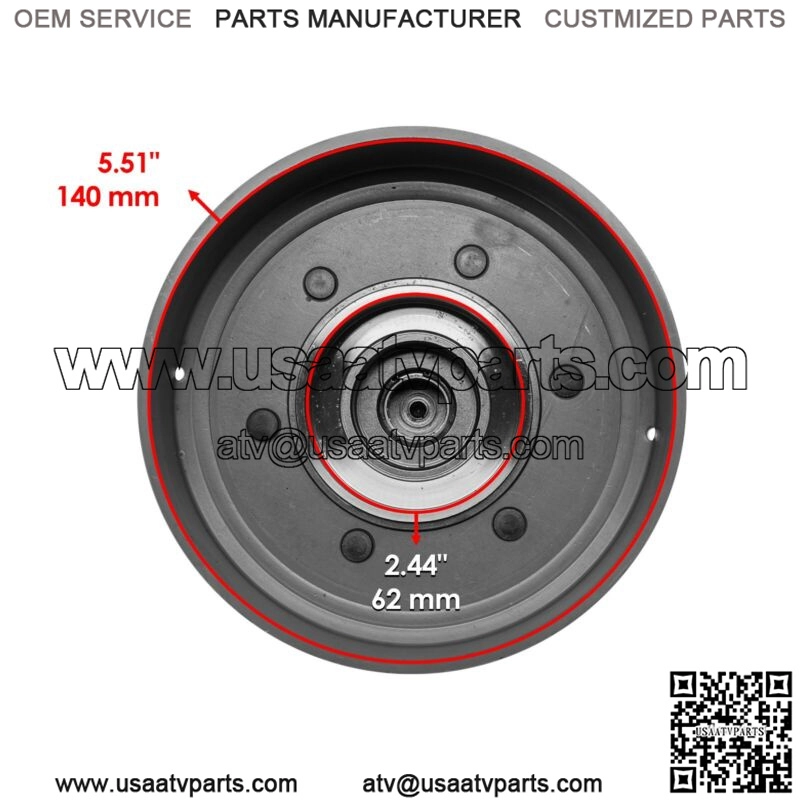

Centrifugal Drum Housing
Inner Diameter :
62mm | 2.44″
Outer Diameter :
140mm | 5.51″
Height :
145mm | 5.70″
Length :
35mm | 1.37″

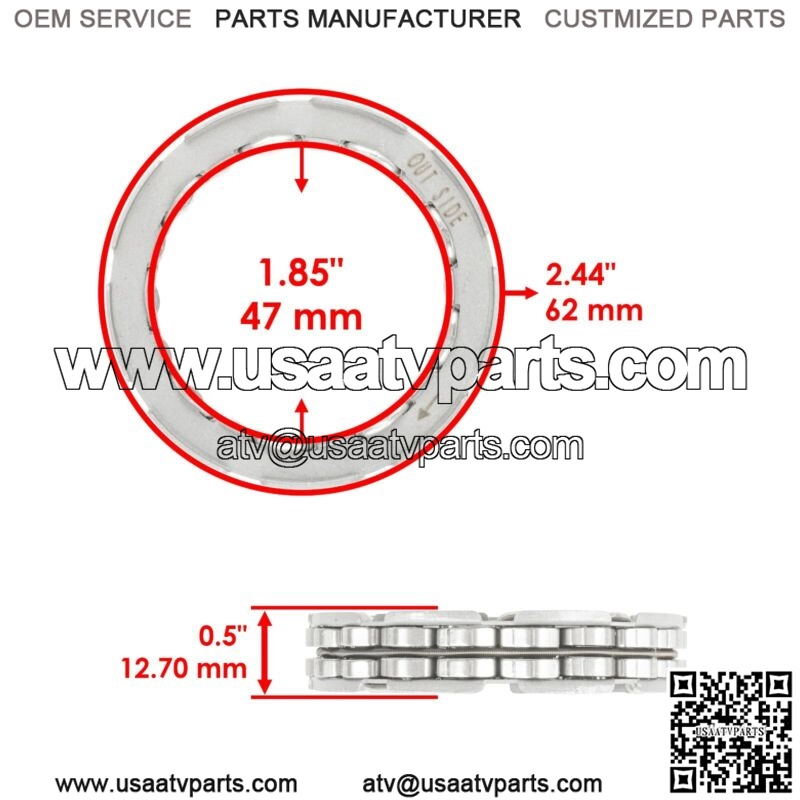

Clutch Hub One Way Bearing
Inner Diameter :
47mm | 1.85″
Outer Diameter :
62mm | 2.44″
Width :
12.70mm | 0.5″

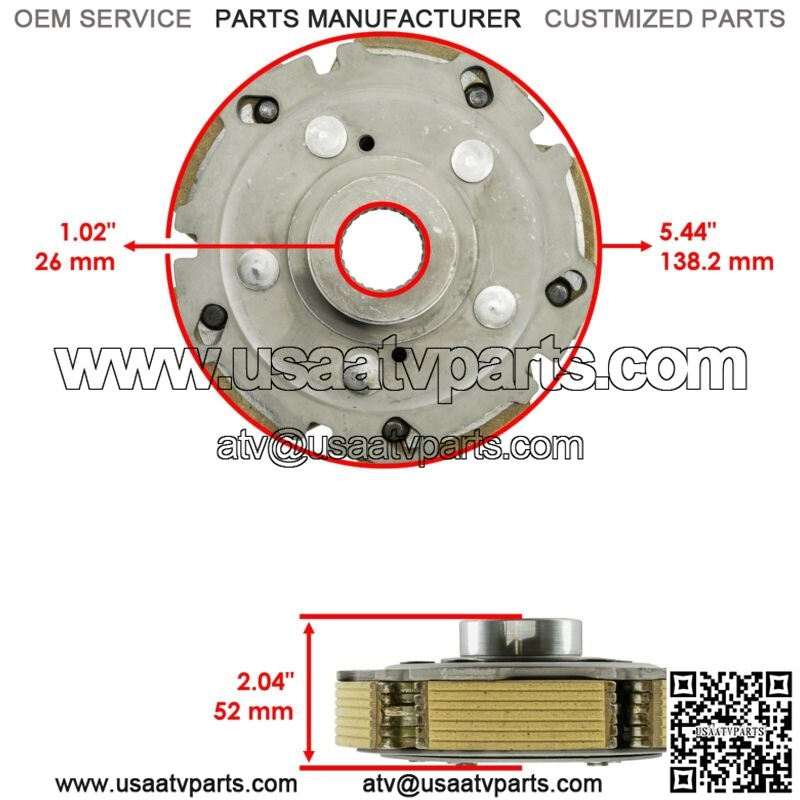

Centrifugal Wet Clutch
Inner Diameter :
26mm | 1.02″
Outer Diameter :
138.2mm | 5.44″
Width :
52mm | 2.04″
